Product Description

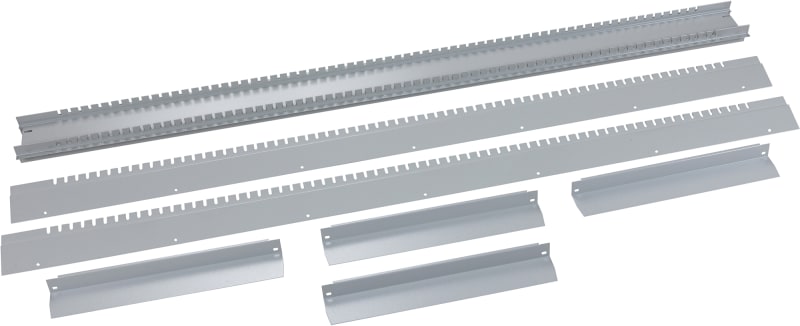

Schneider Electric NSYDCSH2012 Modular Double Frame.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDCSH2012
- EAN / GTIN
- 3606480063954
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose
- Product or component type
- Coupling kit
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT SM; PanelSeT SF
- Device composition
- fixing elements; 1 intermediate central upright; 2 single chassis
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element
- Total number of 18 mm modules
- 576
- Height
- Real: 1905 mm; Nominal: 2000 mm
- Width
- Real: 1102 mm; Nominal: 1200 mm
- Depth
- Real : 100 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 16.000 cm
- Package 1 Length
- 197.000 cm
- Package 1 Weight
- 18.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 35
- Package 2 Height
- 67.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 662.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 2000 mm
- Suitable for enclosure building height
- 1200 mm
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480063954
- SAP 1000089078
- Code 8581374
Product Documentation
More from Schneider Electric
Schneider Electric

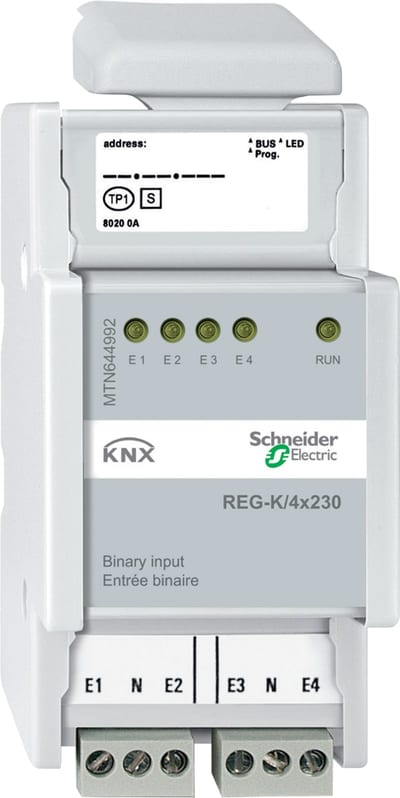

Schneider Electric Binary input REG-K/4X230, light grey MTN644992
Schneider Electric

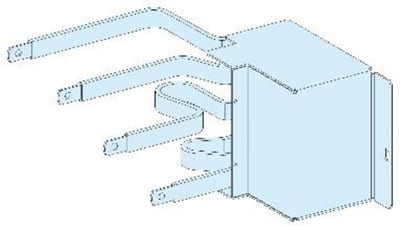

Prefab. Connection Hor.plug-in NSX250/LGY 4P
LVS04432
Schneider Electric

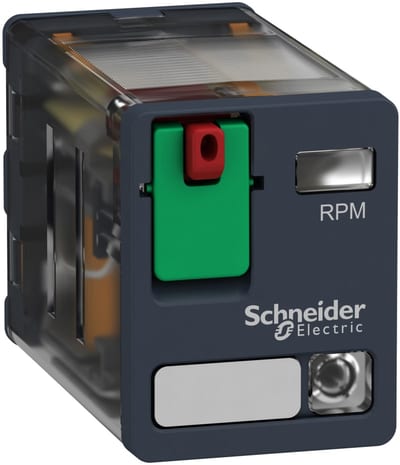

Schneider Electric Power plug-in relay, 15 A, 2 CO, with LED, 230 V AC RPM22P7
Schneider Electric

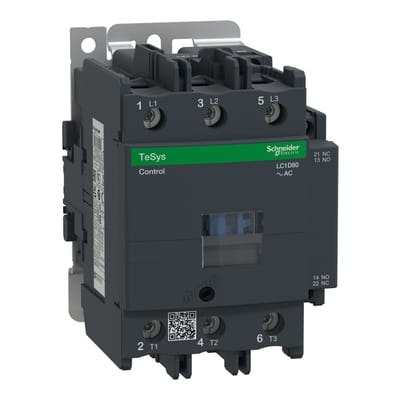

Schneider TeSys D Contactor LC1D80A 80A 3P 100-250V AC/DC Coil
LC1D80AKUE
Schneider Electric

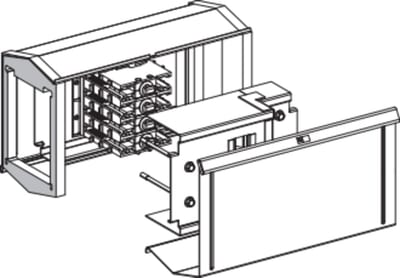

Transition Old/NEW 500A
KSA500FA4
Schneider Electric

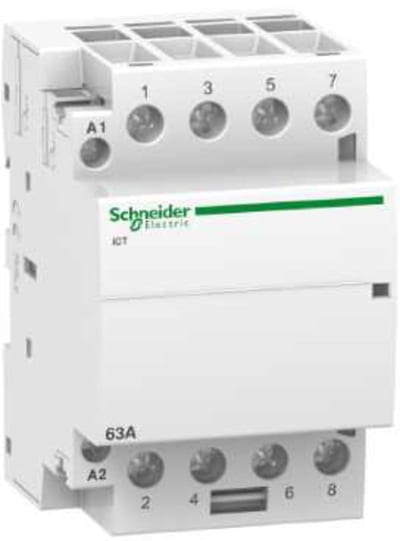

Schneider Electric iCT 63A 4NO 24V 50Hz contactor A9C20164
Schneider Electric

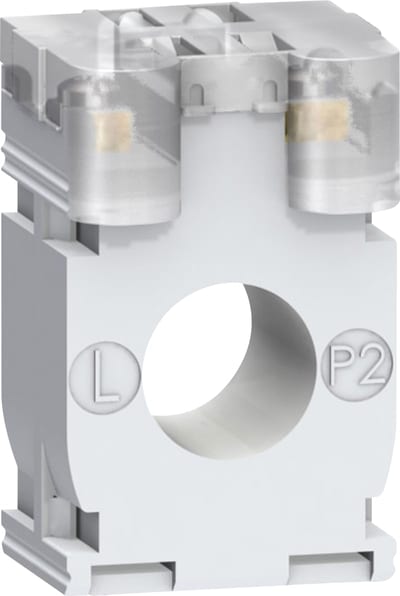

Current Transformer 250/5 Cable Ø21
METSECT5CC025
Schneider Electric

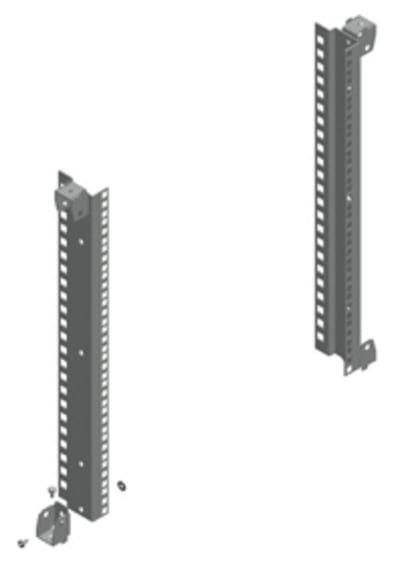

Schneider Electric PanelSeT SF/SM partial 19" fixed rack - 200 mm NSYRCKP4
