Schneider Electric

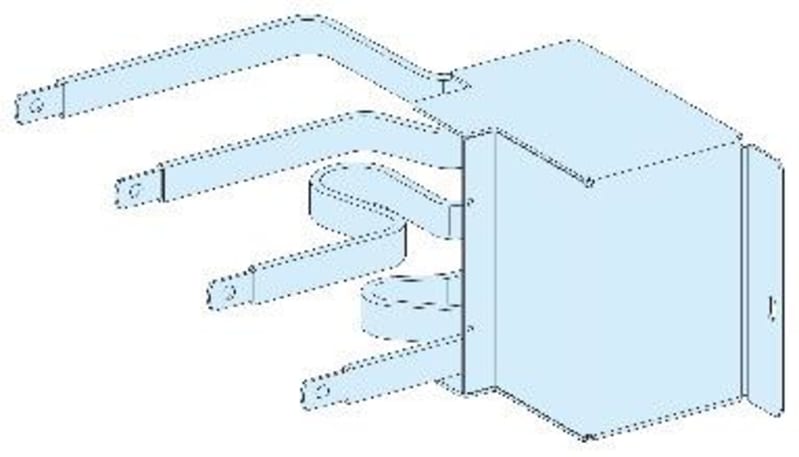

Prefab. Connection Hor.plug-in NSX250/LGY 4P
Part numberLVS04432EAN / GTIN3606481867582HS code8544.42
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04432 Prefabricated connection for plug-in-horizontal mounted NSX100-250 for Linergy LGY 4P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04432
- EAN / GTIN
- 3606481867582
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX100...160 without earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX250 without earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX100...160 with earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX250 with earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 250 A
- Busbar cross section
- 20 x 3 mm
- Product weight
- 1.54 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle horizontal 4P 1 direct 5
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 70
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 250 A
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481867582
- SAP 1200547117
- Code 82879209
Product Documentation
