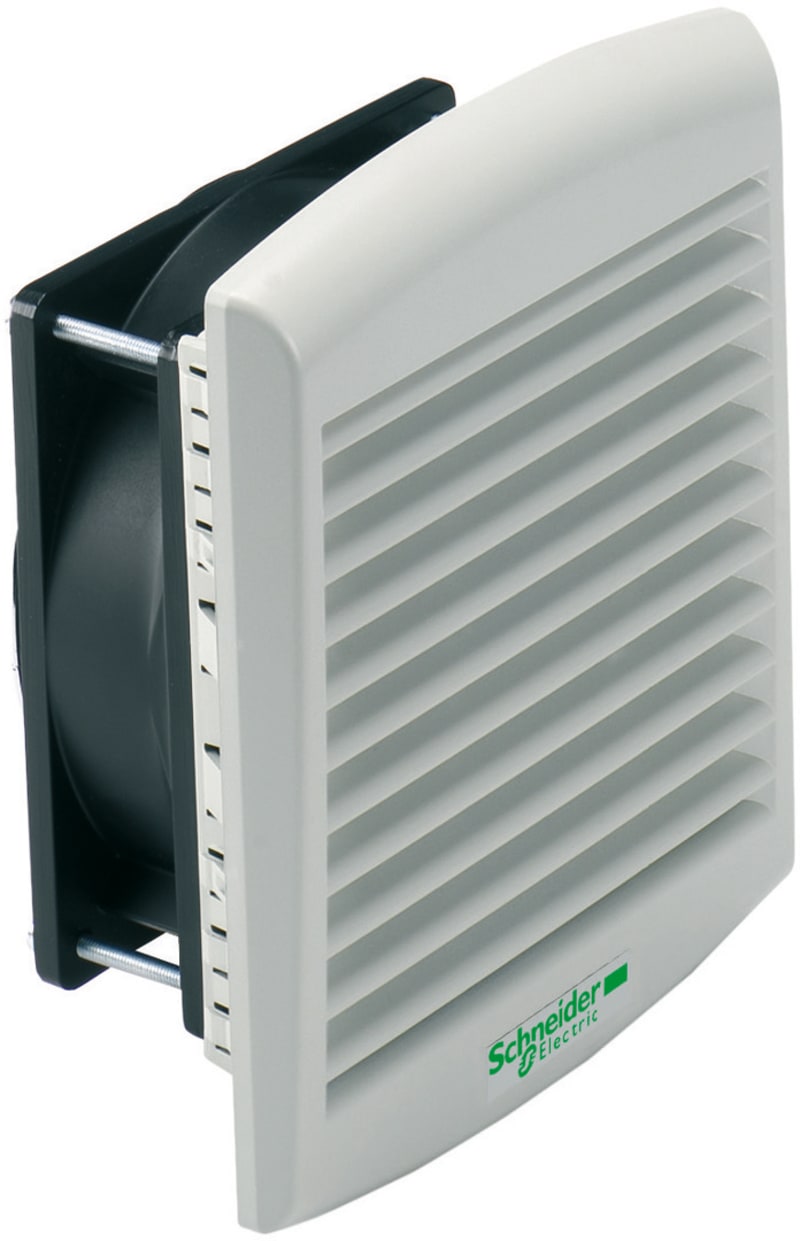

Schneider Electric ClimaSys forced vent. IP54, 85M3/h, 115V, with outlet grille and filter G2 NSYCVF85M115PF
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF85M115PF FAN 85M3/H 115V IP54, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF85M115PF
- EAN / GTIN
- 3606480151217
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Voltage
- 115 V
- IP rating
- IP54
- Flow rate
- 85 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan
- Type of filter
- Standard
- [Us] rated supply voltage
- 75...126 V
- Input voltage
- 115 V 50/60 Hz
- Certification
- CSA
- Absorbed power
- 15 W 60 Hz; 16 W 50 Hz
- [In] rated current
- 0.207 A 50 Hz; 0.179 A 60 Hz
- Noise level < at
- 46…49 dB
- Bearing type
- Ball
- Height
- External: 170 mm
- Width
- External: 150 mm
- Depth
- External : 62 mm
- Cut-out dimensions
- 125 x 125 mm
- Product weight
- 0.78 kg
- Material
- Outlet grille: injected thermoplastic (ASA PC)
- Colour
- Outlet grille: grey (RAL 7035)
- Ambient air temperature for operation
- -20…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Maximum pressure
- 50 Pa flow rate 0 m³/h
- Connections - terminals
- Faston connector
- IP degree of protection
- IP54
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front; 1 cut-out template; 1 power cord
- Condition of use
- Overfrequent filter replacement should be avoided; Surrounding environment must be relatively clean; Outside temperature must be 5 °C lower than inside temperature; Flow rates depends on the work point, see ProClima software; Filter must be cleaned and replaced regularly
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Snap mounting
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 16 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 79 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 49 dB(A)
- Operating voltage AC 50 Hz
- 115 V
- Operating voltage AC 60 Hz
- 115 V
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151217
- SAP 1000089071
- Code 8581371
