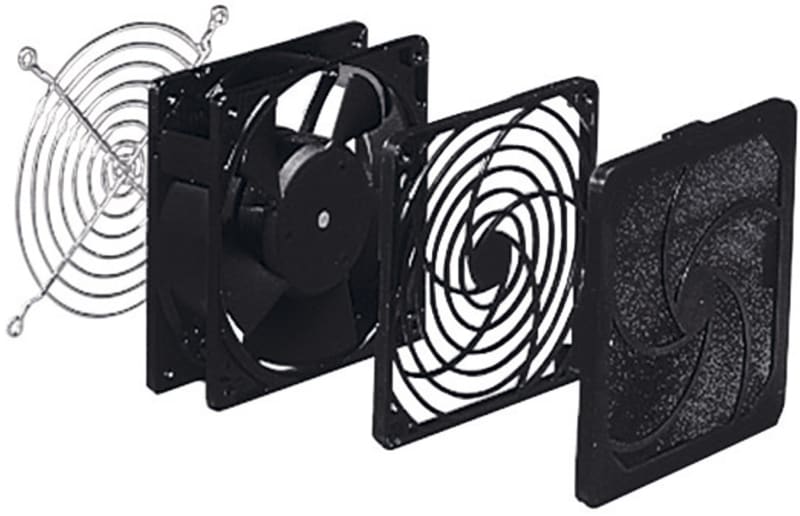

Schneider Electric Climasys forced vent. 65 M3/hour, 230V, with outlet grille plastic and filter NSYCVF65M230PF
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF65M230PF FILTER FAN 65M3/H 65V BLACK, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF65M230PF
- EAN / GTIN
- 3606480151378
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Flow rate
- 65 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan
- Type of filter
- Standard
- Input voltage
- 230 V 50/60 Hz
- Height
- External: 124 mm
- Width
- External: 124 mm
- Depth
- External : 55 mm
- Cut-out dimensions
- Ø 108 mm
- Material
- Outlet grille: ABS (acrylonitrile butadiene-styrene); Filter: polyurethane foam
- Colour
- Outlet grille: black; Filter: black
- IP degree of protection
- IP20
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 150
- Country of origin
- CN
- Warranty (in months)
- 18
- Mounting method
- Snap mounting
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP20
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 20 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 65 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 50 dB(A)
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151378
- SAP 1000089067
- Code 8913433
