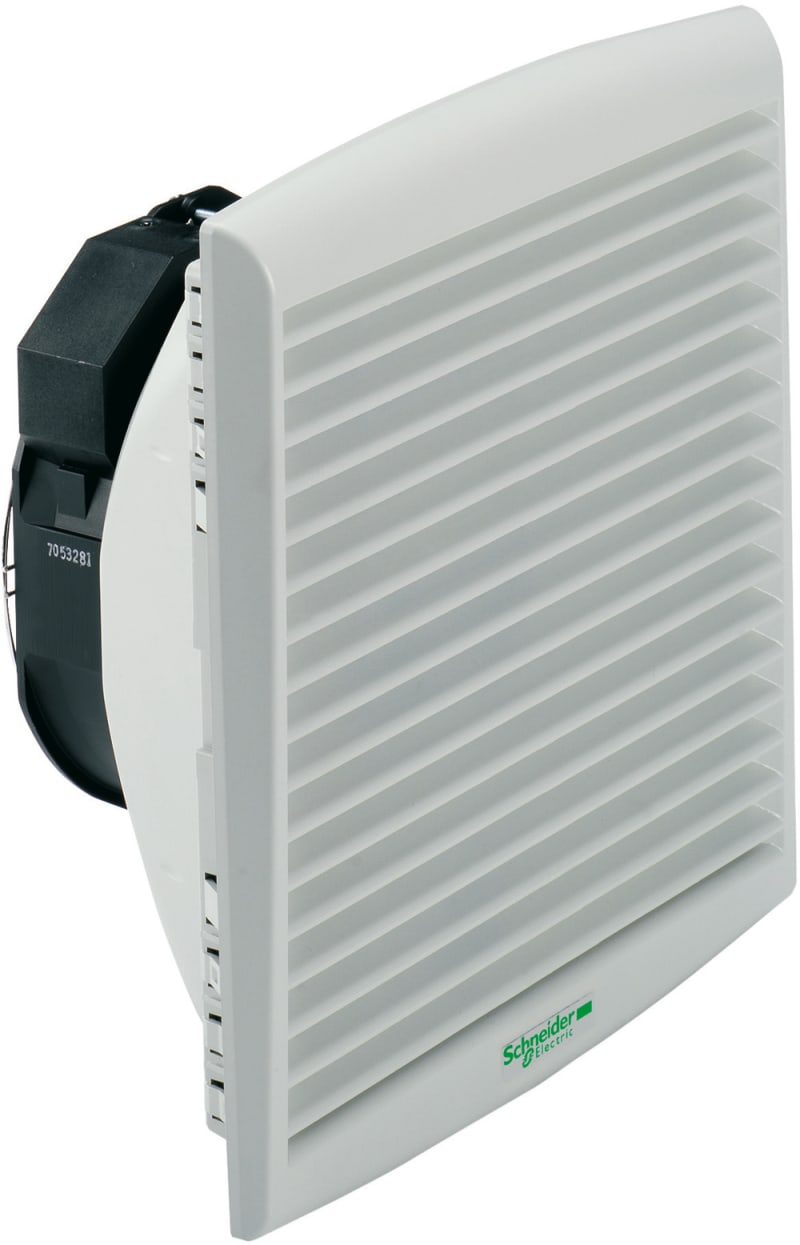

Schneider Electric ClimaSys forced vent. IP54, 300M3/h, 48V DC, with outlet grille and filter G2 NSYCVF300M48DPF

Schneider Electric NSYCVF300M48DPF Fan 300M3/H 48VDC IP 54, ClimaSys.

Manufacturer part number (MPN)

NSYCVF300M48DPF

EAN / GTIN

3606480151316

Sales unit

pcs

Package quantity

4 pcs

Voltage

48 V DC

IP rating

IP54

Flow rate

300 m³/h

Range

ClimaSys

Product name

ClimaSys CV

Product or component type

Fan

Type of filter

Standard

[Us] rated supply voltage

25...60 V

Input voltage

48 V DC

Certification

CSA

Absorbed power

11 W

[In] rated current

0.24 A

Noise level < at

53…57 dB

Bearing type

Ball

Height

External: 268 mm

Width

External: 248 mm

Depth

External : 103.4 mm

Cut-out dimensions

223 x 223 mm

Product weight

1.1 kg

Material

Outlet grille: injected thermoplastic (ASA PC)

Colour

Outlet grille: grey (RAL 7035)

Ambient air temperature for operation

-10…70 °C

Ambient air temperature for storage

-40…70 °C

Maximum pressure

158 Pa flow rate 0 m³/h

Connections - terminals

Cable

IP degree of protection

IP54

Device composition

1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front; 1 cut-out template; 1 power cord

Condition of use

Surrounding environment must be relatively clean; Filter must be cleaned and replaced regularly; Flow rates depends on the work point, see ProClima software; Outside temperature must be 5 °C lower than inside temperature; Overfrequent filter replacement should be avoided

Country of origin

FR

Warranty (in months)

18

Mounting method

Snap mounting

RAL-number

7035

Voltage type

DC

Suitable for 19 inch rack mounting

No

Number of fans

1

EMC-version

No

Degree of protection (IP)

IP54

With protective cover

Yes

With filter

Yes

Rated power

11 W

Roof fan

No

Built as slide-in fan

Yes

Volume flow, freeblowing

262 m³/h

Air circulator

Yes

Suitable for wall built-in

No

Noise emission

56 dB(A)

Operating voltage DC

48 V

HS Code

8538.10
