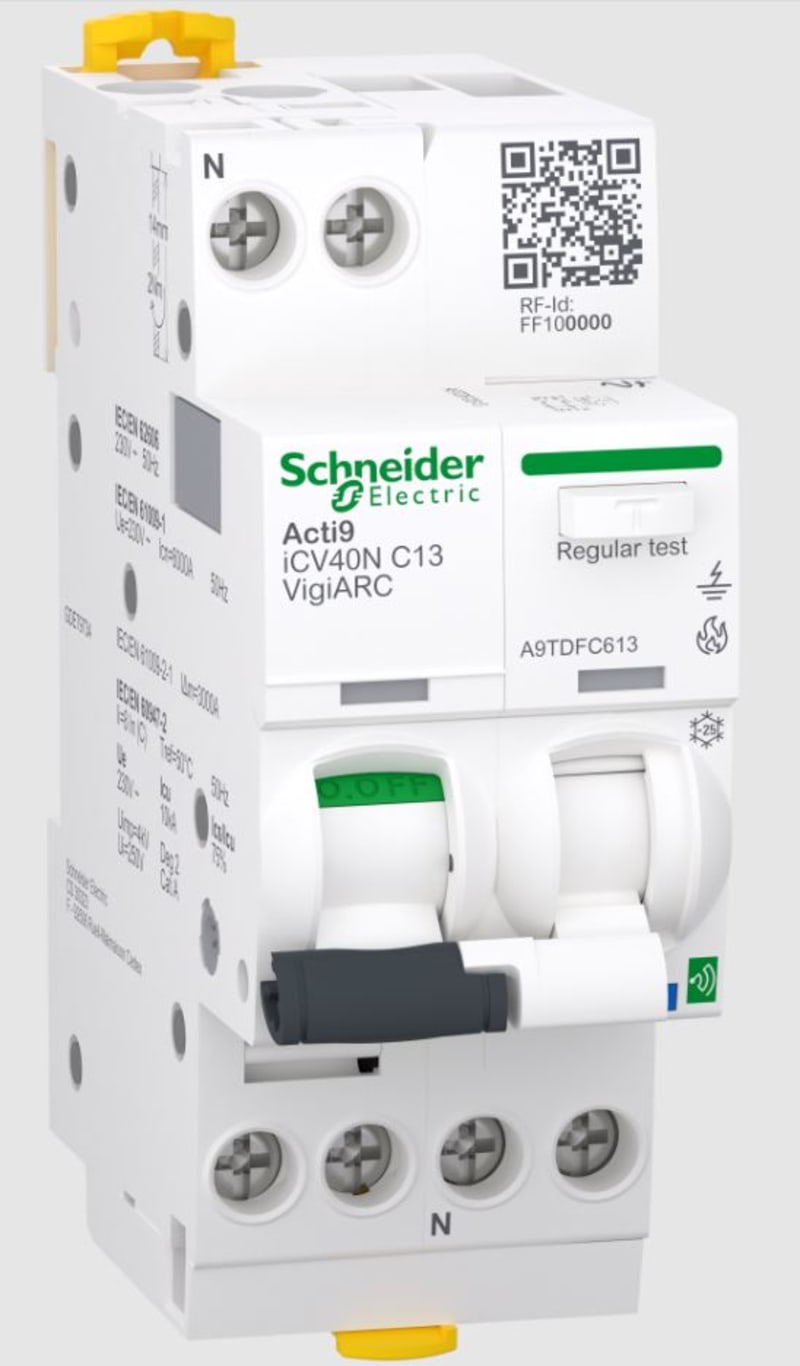

ICV40N RCBO+AFD 1PN 13A C comm..
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9TDFC613 Acti 9 Active - Residual current circuit breaker with overcurrent - 1pol + N - 13A C - 30mA A-SI type - with communication and measurement.
Technical Specifications
- Manufacturer part number (MPN)
- A9TDFC613
- EAN / GTIN
- 3606481906595
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Rated current
- 13 A
- Number of poles
- 2
- Rated voltage
- 230 V
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Built-in depth
- 44 mm
- Additional equipment attached at delivery
- Fire protection switch
- Control voltage type auxiliary equipment
- AC
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Voltage type
- AC
- Rated insulation voltage Ui
- 250 V
- Power loss
- 2.75 W
- Number of protected poles
- 1
- Connectable conductor cross section solid-core
- 1–16 mm²
- Connectable conductor cross section multi-wired
- 1–10 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–50 °C
- Anti-nuisance tripping version
- Yes
- Rated impulse withstand voltage Uimp
- 4 kV
- Disconnection characteristic
- Undelayed
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481906595
- SAP 1200617804
- Code 83022916
Product Documentation
