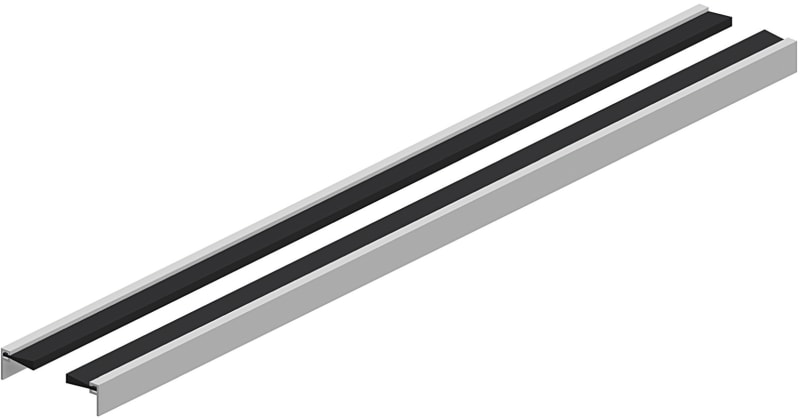

Schneider Electric NSYBCE8 Spacial SF Flange Brush Gasket, 800 mm

Schneider Electric NSYBCE8 is a Spacial SF flange brush gasket, nominal 800 mm wide (735 mm real), 70 mm high and 25 mm deep, for use as a cable management accessory on PanelSeT SF enclosures. It is a set of two clipped gaskets suited to cable gland plates with one or two cable entries. Untreated plastic construction. Country of origin is FR.

Manufacturer part number (MPN)

NSYBCE8

EAN / GTIN

3606485130064

Sales unit

pcs

Range

PanelSeT

Product or component type

Brush gasket

Accessory / separate part category

Cable management accessory

Device application

Multi-purpose

Range compatibility

PanelSeT SF suitable enclosure

Device composition

2 gasket

Quantity per set

Set of 1

Mounting support

Cable gland plate

cable entry

1 or 2 entries

Fixing mode

Clipped

Height

70 mm

Width

Nominal: 800 mm; Real: 735 mm

Depth

25 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.000 cm

Package 1 Width

8.000 cm

Package 1 Length

74.000 cm

Package 1 Weight

430.000 g

Unit Type of Package 2

P12

Number of Units in Package 2

100

Package 2 Height

90.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

57.000 kg

Country of origin

FR

Warranty (in months)

18

Model

Brush

Surface protection

Untreated

Pre-stamping

No

Type

Straight

Thread type

None

Material

Plastic

HS Code

3926.90

• EAN 3606485130064
• SAP 1000088914
• Code 8913089
