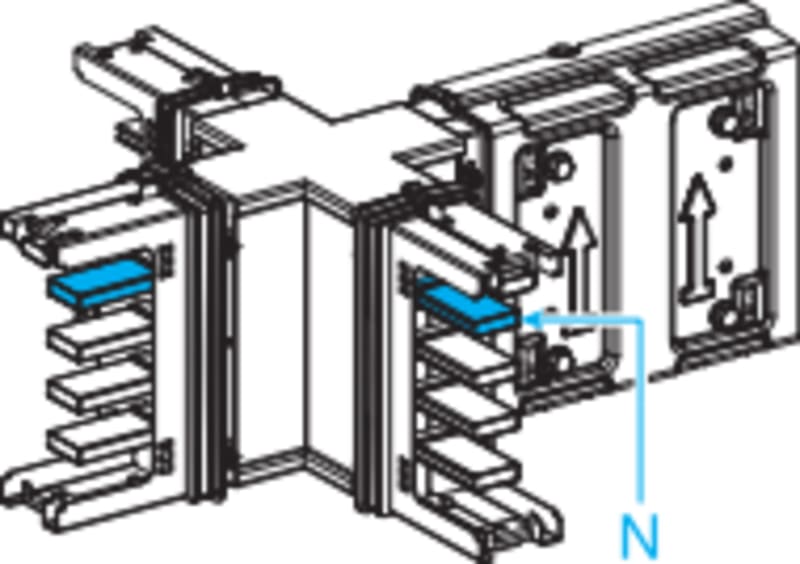

X-Element 100-250A (KSA250DXC40)

Schneider Electric KSA250DXC40 X-Element 100-250A.

Manufacturer part number (MPN)

KSA250DXC40

EAN / GTIN

3606480004261

Sales unit

pcs

Range of product

Canalis

Product name

KS

Device short name

KSA

Offer type

Advanced

Product or component type

Cross

Busbar description

Standard

Product compatibility

Canalis KSA busbar trunking 100…250 A

Device application

Change direction

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

[Ie] rated operational current

250 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

Operating angle

90 °

Direction change type

Edgewise to perpendicular - neutral to up

Colour

White (RAL 9001)

Dimension type

Made to measure

Length

165 mm for side A; 165 mm for side B; 165 mm for side C; 165 mm for side D

Width

54 mm

Height

146 mm

Product weight

4.5 kg

Mounting location

On trunking

Mounting position

Any position

Electrical connection

Lubricated sliding contact

mounting mode

By screws

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

16.500 cm

Package 1 Width

33.000 cm

Package 1 Length

41.900 cm

Package 1 Weight

4.500 kg

Unit Type of Package 2

P12

Number of Units in Package 2

12

Package 2 Height

90.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

66.000 kg

Country of origin

FR

Warranty (in months)

18

Model

Cross box

Flexible

No

Number of poles

5

Number of conductors (without earthing)

4

Rated current AC 50 Hz

250 A

Rated voltage AC 50 Hz

230–690 V

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90

• EAN 3606480004261
• SAP 1200721743
• Code 83832383
