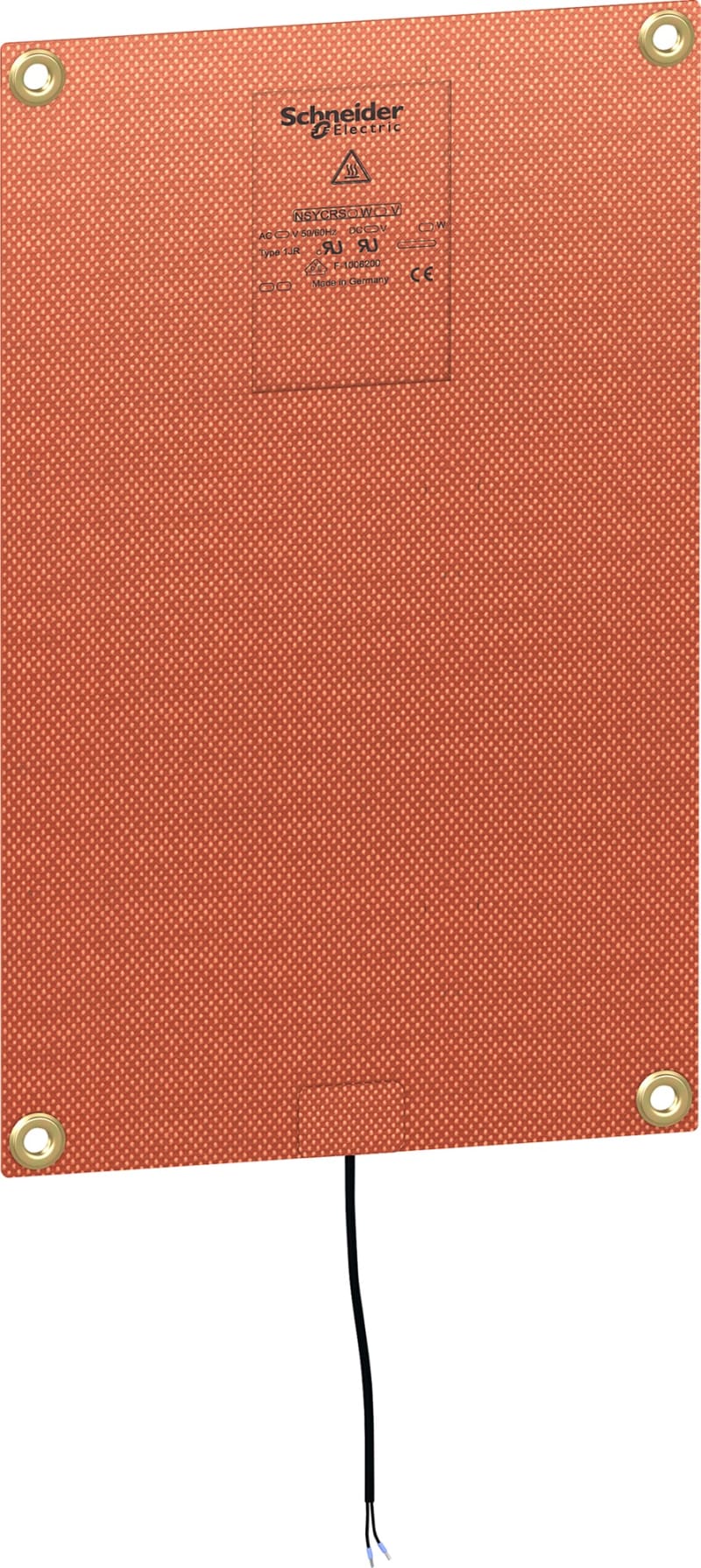

Schneider Electric Climasys Ultra thin resistance heater low starting current 50W 240V 200X320MM NSYCRS50W240V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCRS50W240V Ultratynn heater 50W 240V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCRS50W240V
- EAN / GTIN
- 3606480530166
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 240 V
- Power
- 50 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Ultra thin resistance heater
- Power range
- 50 W
- Input voltage
- 240 V AC 50/60 Hz
- Electrical connection
- Cable length: 2 m
- Operating position
- Vertical; Horizontal
- Ambient air temperature for operation
- -60…70 °C
- Temperature setting range
- -40…70 °C
- Material
- Silicone rubber
- Height
- External: 200 mm
- Width
- External: 320 mm
- Depth
- External : 1.6 mm
- Device composition
- 6 self-adhesive Velcro pads; 6 plastic spacers; 4 Telequick nuts; 4 clip-on nuts; fixing accessories
- Condition of use
- Heaters must be installed with a thermal controller; Electrical protection is needed; Air sealed enclosure
- fixing mode
- By 4 screws
- Mounting support
- Telequick mounting plate; DIN rail; Adhesive Velcro; Standard mounting plate
- Country of origin
- MX
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 50 W
- Operating voltage AC 50 Hz
- 240 V
- Operating voltage AC 60 Hz
- 240 V
- Continuous heating power at 10 °C
- 50 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480530166
- SAP 1000336123
- Code 81085233
Product Documentation
More from Schneider Electric
Schneider Electric
Backplate IP30 width 400mm PrismaSeT P
LVS08734
Schneider Electric
Busbar Horizontal-LinergyLGYE 1600A
LVS04564
Schneider Electric
Schneider Electric NSYSDCR300 Set of 4 step slides made of treated steel, D300MM
Schneider Electric

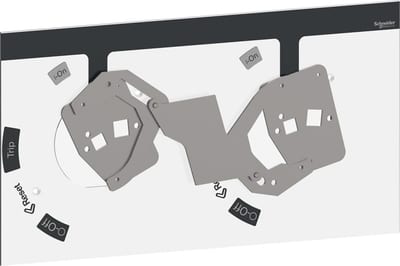

Schneider Electric LV429369ET mechanical interlocking for extended rotary handle, ComPacT NSX 100/160/250
Schneider Electric

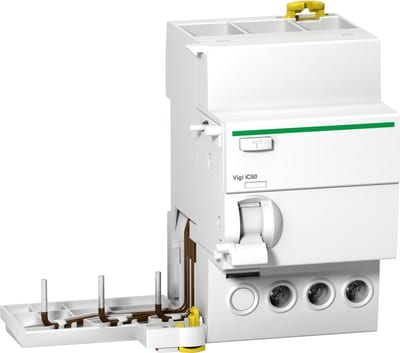

VIGI IC60 3P 25A 30MA SI
A9W31325
Schneider Electric

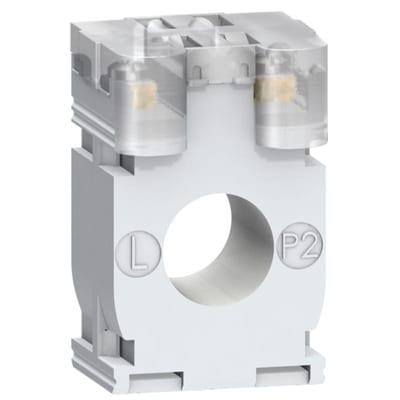

Current Transformer 125/5 Cable Ø21
