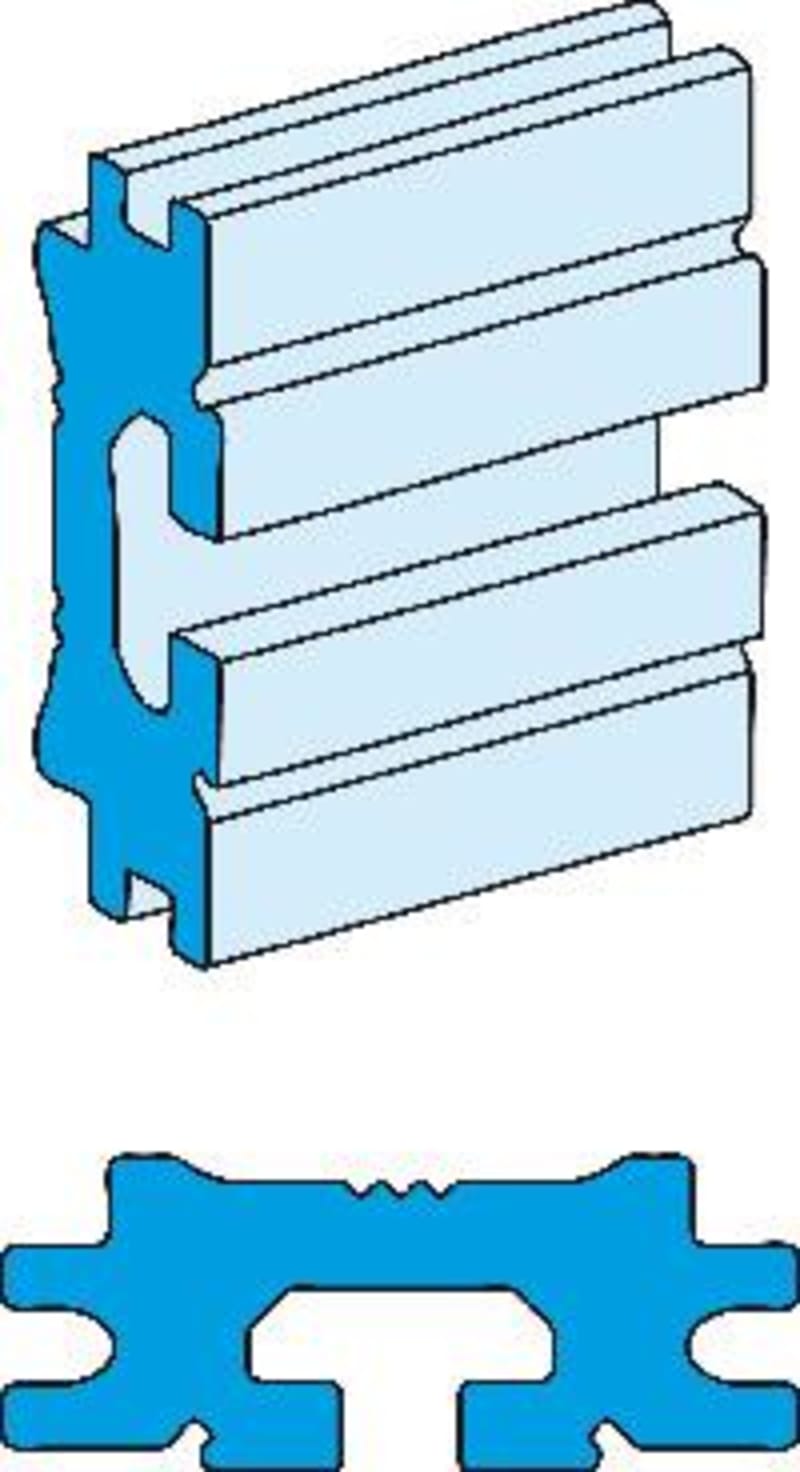

Busbar Horizontal-LinergyLGYE 1600A

Schneider Electric LVS04564 — LINERGY LGYE PROFILE 1600A LENGTH 2000MM.

Manufacturer part number (MPN)

LVS04564

EAN / GTIN

3606481870582

Sales unit

pcs

Rated current

1600 A

Range

Linergy

Range of product

Linergy

Product or component type

Profile busbar

Product name

Linergy LGYE

Range compatibility

PrismaSeT PrismaSeT P enclosure

Accessory / separate part category

Busbar accessory

Busbar description

Linergy

Quantity per set

Set of 1

Installation direction

Horizontal, operating position: top; Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm; Cubicle duct - width 400 mm

[Ui] rated insulation voltage

1000 V

[Uimp] rated impulse withstand voltage

12 kV (degree of pollution: 3)

[Ie] rated operational current

1600 A

[Icw] rated short-time withstand current

85 kA (1 s) for 3 supports (horizontal position); 50 kA (1 s) for 2 supports (horizontal position)

Permissible current

1650 A at 35 °C: <= IP31; 1480 A at 35 °C: IP31

Length

2000 mm

Width

60 mm

Depth

23 mm

Product weight

5.16 kg

Colour

Natural

Type of busbar connection

Single t-slot

Connection pitch

Free connection position

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.2 cm

Package 1 Width

6.6 cm

Package 1 Length

210.0 cm

Package 1 Weight

5.151 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

48

Package 2 Height

23.5 cm

Package 2 Width

120.0 cm

Package 2 Length

202.0 cm

Package 2 Weight

267.5 kg

Country of origin

FR

Warranty (in months)

18

Model

Profile

Height

23 mm

Flexible

No

Surface protection

Untreated

Rated current In

1600 A

HS Code

7604.29

• EAN 3606481870582
• SAP 1200546979
• Code 82880231
