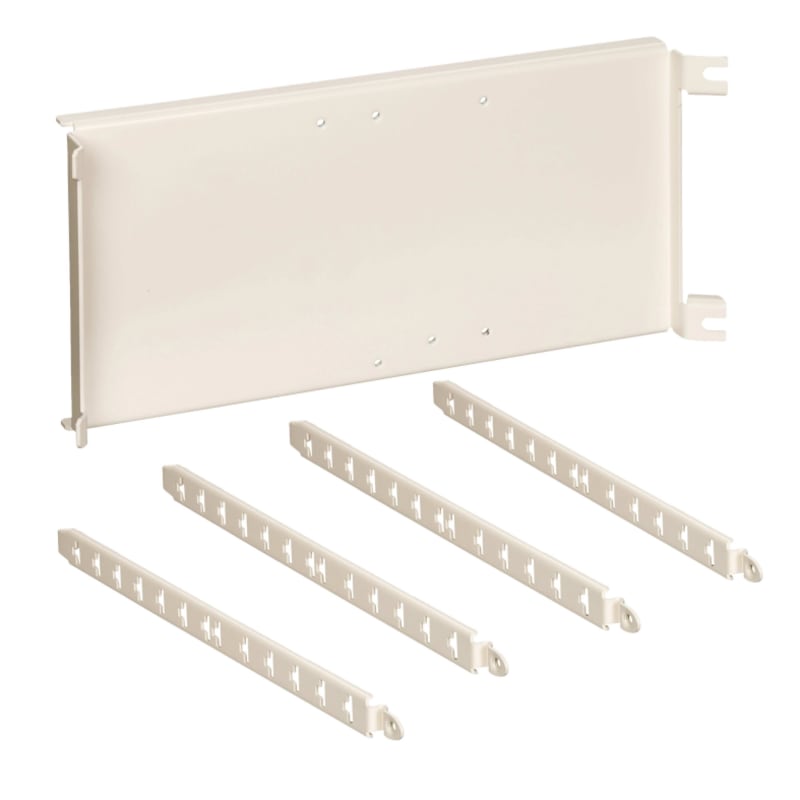

Mounting plate NSXm-horison. B650MM-PRISMASET P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03409 Mounting plate NSXm-tilting or dreiehandtak-horizontal mounting in 650mm section-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03409
- EAN / GTIN
- 3606481871565
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Mounting plate description
- Dedicated
- Installed device
- ComPact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSXm integrated earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation
- Poles description
- 1 x 3P or 4P: fixed NSXm horizontal installation
- Number of vertical modules [50 mm]
- 3 module(s): NSXm without earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): NSXm integrated earth leakage protection , direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 575 mm
- Height
- 150 mm
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm integrated fixed toggle horizontal 4P 1 direct 3 12.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481871565
- SAP 1200547266
- Code 82879460
