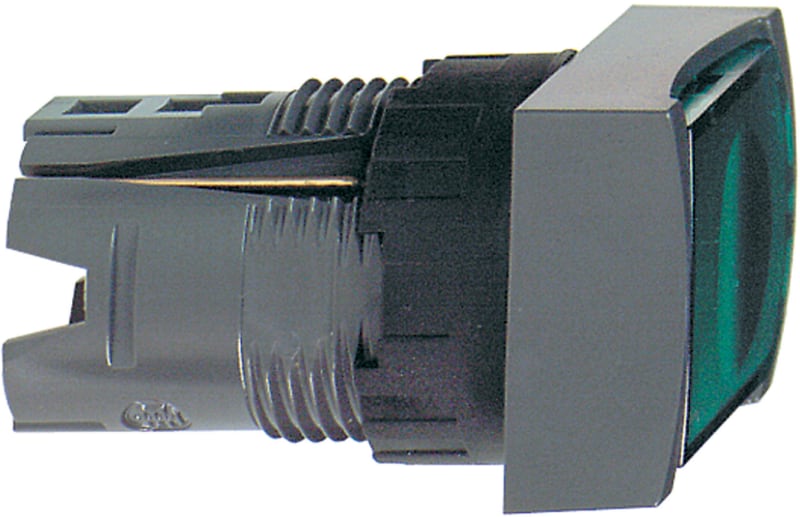

Schneider Electric ZB6DW3 illuminated push-button head, green, rectangular
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB6DW3 illuminated push-button head, green, rectangular, from the Harmony XB6 range for 16 mm cutouts. Spring-return actuator with an unmarked green flush cap and integral-LED compatibility. Plastic bezel rated IP65 with NEMA 4/4X/13 protection.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DW3
- EAN / GTIN
- 3389110784206
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for illuminated push-button
- Product compatibility
- Integral LED
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Type of operator
- spring return
- Operator profile
- Green flush, unmarked
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 33 mm
- Product weight
- 0.016 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94; NEMA 13 conforming to CSA C22.2 No 94
- Standards
- JIS C 852; UL 508; EN/IEC 60947-1; EN/IEC 60947-5-5; CSA C22.2 No 14; EN/IEC 60947-5-1; JIS C8201-5-1; JIS C8201-1
- Product certifications
- CSA; GOST; CCC; UL
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 80
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Colour button
- Green
- Suitable for lighting
- Yes
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Grey
- Degree of protection (IP), front side
- IP65
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Switching function latching
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110784206
- SAP 1000077385
- Code 8820584
Product Documentation
