Schneider Electric

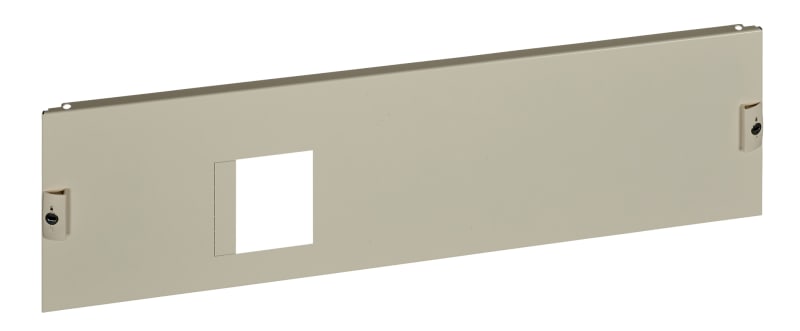

Front plate NSX250-DREIEH.HOR.B650 Prisma G
Part numberLVS03301EAN / GTIN3606481871978HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03301 Front plate for NSX100-250-fast-dreiehandtak-horizontal mounting in 650mm section-4 modules-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03301
- EAN / GTIN
- 3606481871978
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Type of front plate
- Cut-out
- Installed device
- EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...160 integrated earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX250 integrated earth leakage protection - control: direct front rotary handle - horizontal installation; Human-switchboard interface: 96 x 96 mm device; Human-switchboard interface: HSI; Enerlin'X: fixed FDM121 - control: remote control - vertical installation
- Poles description
- 1 x 3P: mounting plate support: CVS100...160 horizontal installation; 1 x 4P: mounting plate support: CVS100...160 horizontal installation; 1 x 3P: mounting plate support: CVS250 horizontal installation; 1 x 4P: mounting plate support: CVS250 horizontal installation; 1 x 3P: mounting plate support: NSX100...160 horizontal installation; 1 x 4P: mounting plate support: NSX100...160 horizontal installation; 1 x 3P: mounting plate support: NSX250 horizontal installation; 1 x 4P: mounting plate support: NSX250 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing enclosure - width 850 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 750 mm
- Height
- 200 mm
- Quantity per set
- Set of 1
- functional unit
- 850 mm PrismaSeT G floor-standing enclosure human-switchboard interface 96 x 96 mm device 1 4; 850 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 1 4; 850 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 fixed remote control vertical 1 4; 850 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 without fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 without fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 integrated fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 integrated fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 integrated fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 integrated fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 850 mm
- Material
- Steel
- Number of height units
- 4
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481871978
- SAP 1200547259
- Code 82880411
