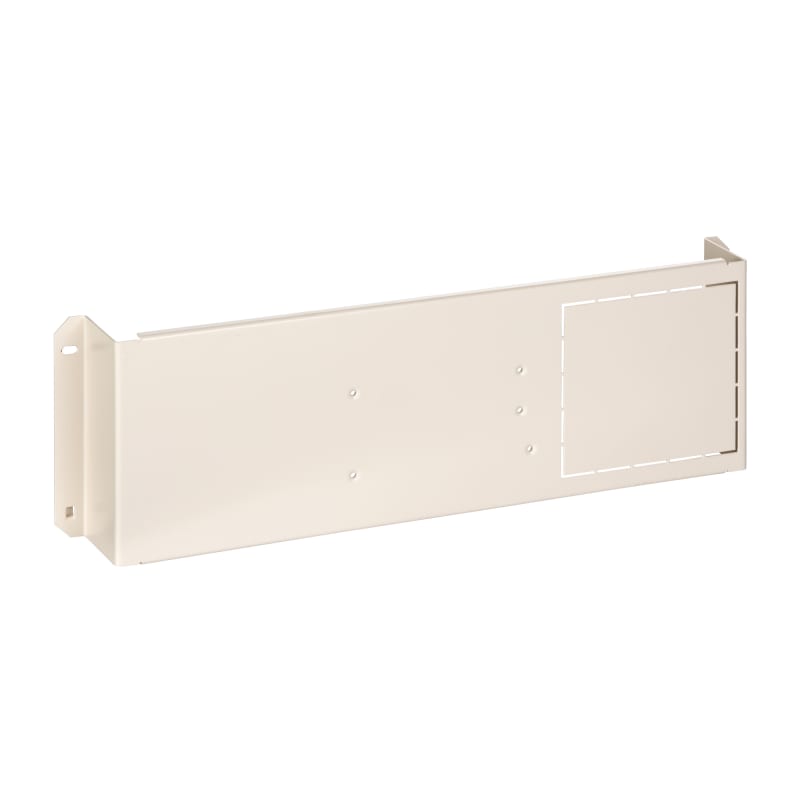

Mounting plate horizontal.-tilting-NSXm PrismaSeT G

Schneider Electric LVS03020 Mounting plate horizontal. NSXm PrismaSeT G.

Manufacturer part number (MPN)

LVS03020

EAN / GTIN

3606481871497

Sales unit

pcs

Package quantity

16 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 850 mm; Floor-standing enclosure + duct - width 600 + 300 mm; Wall-mounted enclosure + duct - width 600 + 300 mm

Mounting plate description

Dedicated

Installed device

ComPact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - horizontal installation

Poles description

1 x 3P or 4P: fixed NSXm horizontal installation

Number of vertical modules [50 mm]

3 module(s): NSXm without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 3 module(s): NSXm without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widefloor-standing enclosure + duct; 3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widewall-mounted enclosure + duct; 3 module(s): NSXm without earth leakage protection , direct in 850 mm Widefloor-standing enclosure; 3 module(s): NSXm with earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 3 module(s): NSXm with earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 3 module(s): NSXm with earth leakage protection , direct in 600 + 300 mm Widefloor-standing enclosure + duct; 3 module(s): NSXm with earth leakage protection , direct in 600 + 300 mm Widewall-mounted enclosure + duct; 3 module(s): NSXm with earth leakage protection , direct in 850 mm Widefloor-standing enclosure

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Textured; Matt

Colour

White (RAL 9003)

Width

470 mm

Height

150 mm

Functional unit

600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 25 mm; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 25 mm

Number of Units in Package 1

1

Number of Units in Package 2

10

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

Country of origin

Italy

HS Code

7326.90

• EAN 3606481871497
• SAP 1200547254
• Code 82880149
