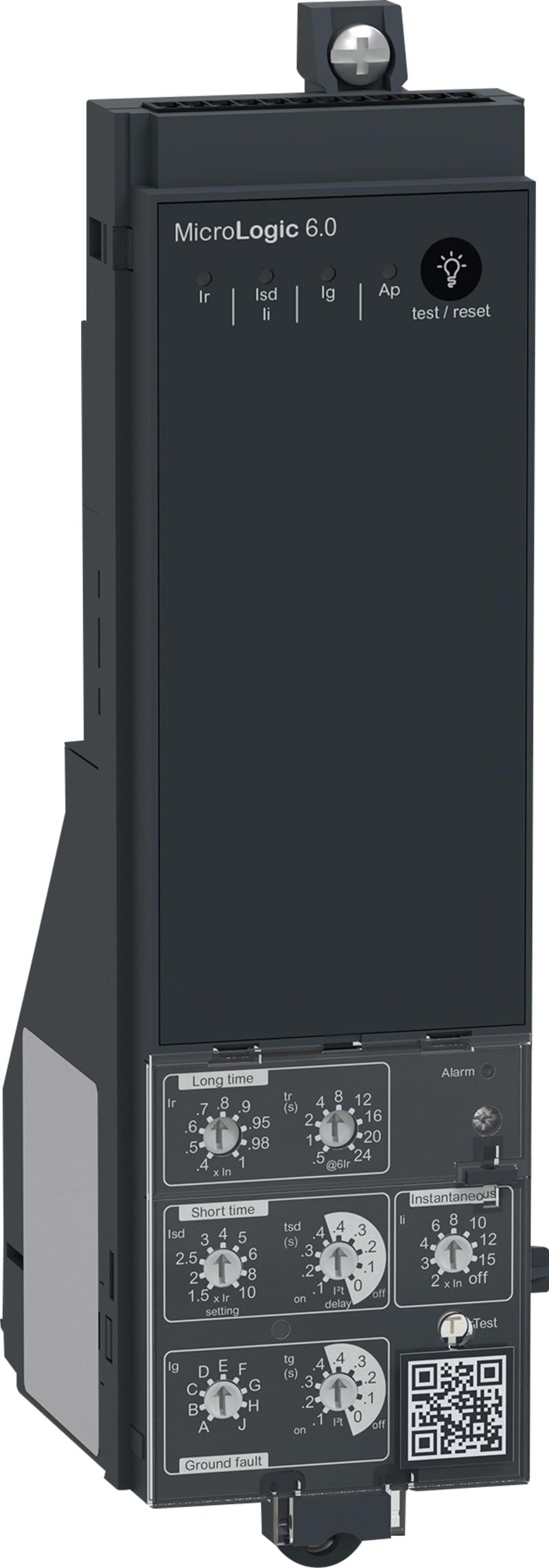

Schneider Electric Control unit MicroLogic 6.0, ComPacT NS630B to NS3200 fixed manually operated, selective and earth-fault protections C60FM

Schneider Electric C60FM Protection-Micrologic 6.0 for Circuit breaker ComPacT NS630b for NS3200-manual-fixed-mounted.

Manufacturer part number (MPN)

C60FM

EAN / GTIN

3606482098244

HS code

8536.90

Sales unit

pcs

Range

ComPacT

Range of product

ComPacT NS630b...1600 new generation; ComPacT NS1600b...3200 new generation

Product or component type

Control unit

Trip unit name

MicroLogic 6.0

Trip unit technology

Electronic

Range compatibility

ComPacT NS630b...1600; ComPacT NS1600b...3200

Device application

Distribution

Number of poles

3P; 4P

Protected poles description

4t; 3t; 3t + N/2

Trip unit protection functions

Selective + earth-fault protection

Protection type

L : for overload protection (long time); S : for short time short-circuit protection; I : for instantaneous short-circuit protection; G : for earth fault

Trip unit rating

630 A at 50 °C; 800 A at 50 °C; 1000 A at 50 °C; 1250 A at 50 °C; 1600 A at 50 °C; 2000 A at 50 °C; 2500 A at 50 °C; 3200 A at 50 °C

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

0.4...1 x In

Long-time protection delay adjustment type tr

Adjustable 9 settings

[tr] long-time protection delay adjustment range

0.7…16.6 s at 7.2 x Ir; 0.5…24 s at 6 x Ir; 12.5…600 s at 1.5 x Ir

Thermal memory

20 mn

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

1.5...10 x Ir

Short-time protection delay adjustment type tsd

Adjustable

[tsd] Short-time protection delay adjustment range

0…0.4 s I²t=off; 0.1…0.4 s I²t=on

Instantaneous protection pick-up adjustment type Ii

Adjustable 9 settings

[Ii] instantaneous protection pick-up adjustment range

2...15 x In; Off

Ground-fault protection pick-up adjustment type Ig

Adjustable 9 settings

[Ig] ground-fault protection pick-up adjustment range

0.2...1 x In for 400 A = 1250 A

Ground-fault protection time delay adjustment type tg

Adjustable

[tg] ground-fault protection time delay adjustment range

0…0.4 s I²t=off; 0.1…0.4 s I²t=on

Earth-leakage protection

Without

Zone selective interlocking ZSI

Without

Local signalling

3 LEDs (red) for electrical fault; 1 LED (red) for internal error; 1 LED (yellow) for overload

Standards

IEC 60947-4-2

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Warranty (in months)

18

HS Code

8536.90
