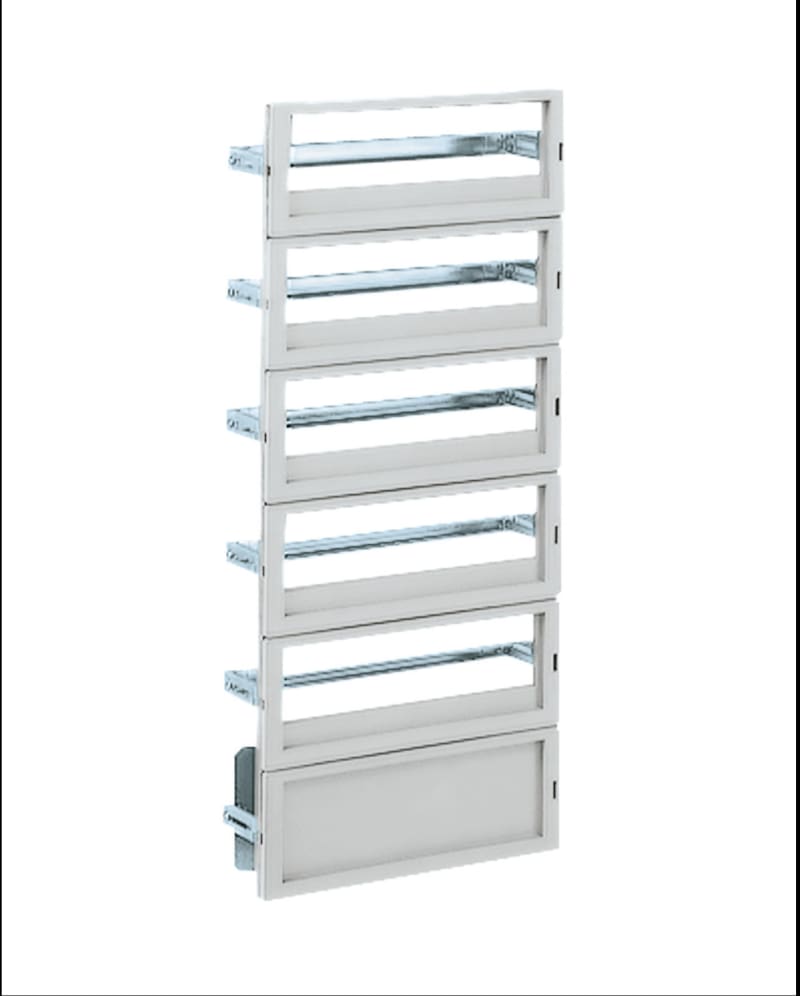

PLA157 DLPMod insert 7035 264M
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYDLP264G PLA157 DLPMod insert 7035 264m.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLP264G
- EAN / GTIN
- 3606485422848
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose; Modular distribution application
- Product or component type
- Chassis
- Device short name
- DLP
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT PLA; PanelSeT PHD
- Device composition
- 1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 1 plain front panel; 8 front panels with 35 mm DIN rail
- Additional information
- IP2x not respected when chassis is mounted at 67 mm
- Material
- Front panel: self-extinguishing; Chassis structure and rails: galvanised steel
- Colour
- Front panel: grey (RAL 7035)
- Fixing mode
- By fixing element - on front with supports location
- Adjustment
- In height from 40 to 85 mm for DIN rail
- Number of horizontal rows
- 8
- Total number of 18 mm modules
- 264
- Type of front plate
- Plain and cut-out plates
- Number of cut-out
- 8 cut-outs
- Height
- 1500 mm
- Width
- 750 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.000 cm
- Package 1 Width
- 68.000 cm
- Package 1 Length
- 143.000 cm
- Package 1 Weight
- 13.406 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 10
- Package 2 Height
- 87.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 134.060 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Adaptor kit
- Depth
- 130 mm
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606485422848
- SAP 1000752315
- Code 8489246
