RH99M 12/48VDC-12/24VAC MAN
Pricing
Request a quote
We reply within 24 hours
Product Description

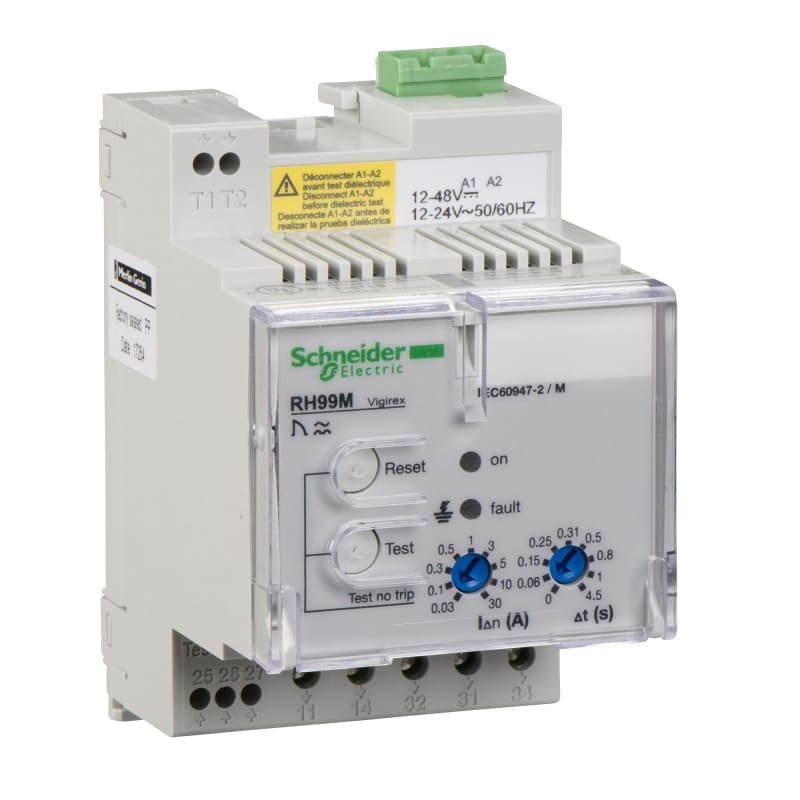

Schneider Electric 56170 Vigirex earth-fault relay RH99M 12/48V DC - 12/24V AC.
Technical Specifications
- Manufacturer part number (MPN)
- 56170
- EAN / GTIN
- 3303430561705
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 12/48 V DC
- External power supply required
- Yes
- Rated switch current
- 8 A
- Voltage type (operating voltage)
- AC/DC
- Type of electric connection
- Screw connection
- Voltage type for actuating
- AC/DC
- With detachable clamps
- No
- Function
- For mixed system
- Response value amperage 2
- 0–30000 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 4.82 s
- Indication of difference current
- No
- Error registration possible
- No
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Width
- 54 mm
- Height
- 97 mm
- Depth
- 74 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3303430561705
- SAP 1000029846
- Code 8506123
