PLA107 DLPMod insert 7035 198M

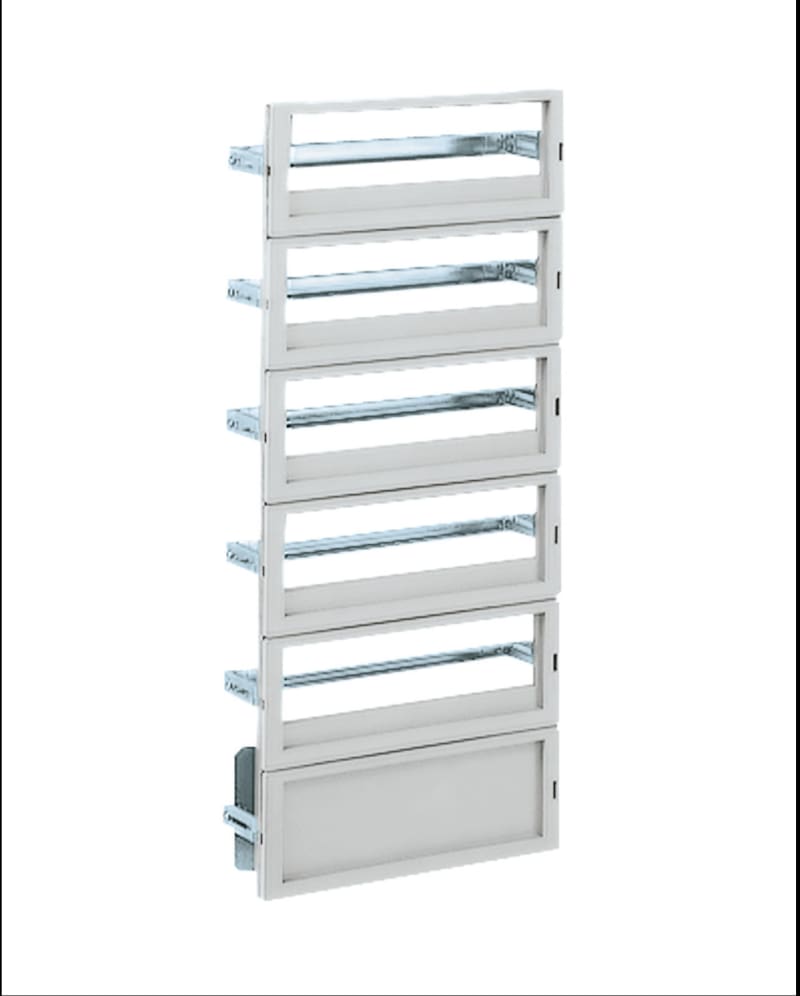

Schneider Electric NSYDLP198G PLA107 DLPMod insert 7035 198m.

Manufacturer part number (MPN)

NSYDLP198G

EAN / GTIN

3606480773921

Sales unit

pcs

Range

PanelSeT

Accessory / separate part category

Mounting accessory

Application

Modular distribution application; Multi-purpose

Product or component type

Chassis

Device short name

DLP

For enclosure nominal dimensions

-

Mounting location

Front of enclosure

Range compatibility

PanelSeT PLA; PanelSeT PHD

Device composition

1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 6 front panels with 35 mm DIN rail

Additional information

IP2x not respected when chassis is mounted at 67 mm

Material

Front panel: self-extinguishing; Chassis structure and rails: galvanised steel

Colour

Front panel: grey (RAL 7035)

Fixing mode

By fixing element - on front with supports location

Adjustment

In height from 40 to 85 mm for DIN rail

Number of horizontal rows

6

Total number of 18 mm modules

198

Type of front plate

Cut-out plate

Number of cut-out

6 cut-outs

Height

1000 mm

Width

750 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

14.500 cm

Package 1 Width

67.500 cm

Package 1 Length

93.500 cm

Package 1 Weight

8.000 kg

Unit Type of Package 2

PAM

Number of Units in Package 2

10

Package 2 Height

159.000 cm

Package 2 Width

100.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

92.000 kg

Country of origin

ES

Warranty (in months)

18

Spare part

No

Accessory

Yes

Type of accessory/spare part

Adaptor kit

Depth

135 mm

HS Code

8538.10

• EAN 3606480773921
• SAP 1000752312
• Code 8489229
