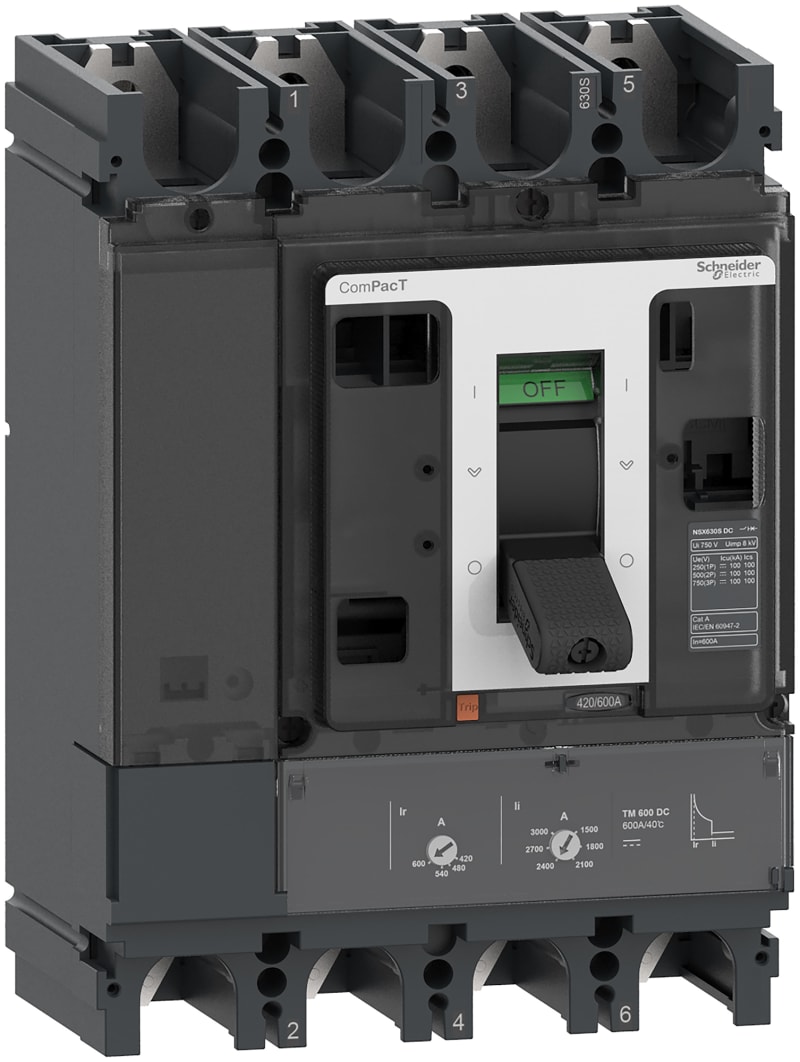

Schneider Electric Circuit breaker, ComPacT NSX400S DC, 100KA/750VDC, 4 poles, TM-DC trip unit 400A C40S4TM400D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C40S4TM400D Circuit breaker ComPacT NSX400S-TM400-DC 4p with thermomagnetic protection 400A-100kA/750VDC.
Technical Specifications
- Manufacturer part number (MPN)
- C40S4TM400D
- EAN / GTIN
- 3606482003446
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 4
- Range
- ComPacT
- Product name
- ComPacT NSX DC
- Device short name
- NSX400S DC
- Product or component type
- Circuit breaker
- Device application
- Distribution
- Poles description
- 4P
- Protected poles description
- 4D
- Neutral position
- Left
- [In] rated current
- 400 A at 40 °C
- [Ue] rated operational voltage
- 750 V DC
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity
- 100 kA Icu at 24...125 V DC 1 pole conforming to IEC 60947-2; 100 kA Icu at 250 V DC 1 pole conforming to IEC 60947-2; 100 kA Icu at 500 V DC 2 poles in series conforming to IEC 60947-2; 100 kA Icu at 750 V DC 3 poles in series conforming to IEC 60947-2
- Breaking capacity code
- S 100 kA 500 V DC
- Trip unit name
- TM-DC
- Trip unit technology
- Thermal-magnetic
- Trip unit protection functions
- LI
- Control type
- Toggle
- Circuit breaker mounting mode
- Fixed
- [Ui] rated insulation voltage
- 750 V DC conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 100 kA at 24...125 V DC conforming to IEC 60947-2; 100 kA at 250 V DC conforming to IEC 60947-2; 100 kA at 500 V DC conforming to IEC 60947-2; 100 kA at 750 V DC conforming to IEC 60947-2
- Mechanical durability
- 5000 cycles
- Electrical durability
- 2000 cycles at 750 V In/2; 1000 cycles at 750 V In
- Mounting support
- Backplate
- Mounting position
- Horizontal and vertical; Flat on the back
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Protection type
- L : for overload protection (thermal); I : for short-circuit protection (magnetic)
- Trip unit rating
- 400 A at 40 °C
- Long-time pick-up adjustment type Ir (thermal protection)
- Adjustable
- [Ir] long-time protection pick-up adjustment range
- 0.7...1 x In
- Long-time protection delay adjustment type tr
- Fixed
- Instantaneous protection pick-up adjustment type Ii
- Adjustable
- [Ii] instantaneous protection pick-up adjustment range
- 2.5...5 x In
- Earth-leakage protection
- Without
- Number of slots
- 6 slot(s)
- Width (W)
- 185 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Product weight
- 8.4 kg
- Standards
- EN/IEC 60947-2
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...2000 m without derating; 2000 m...5000 m with derating
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482003446
- SAP 1200534809
- Code 82688445
Product Documentation
More from Schneider Electric
Schneider Electric
Push-button flush white with text (ZB4FA145)
Schneider Electric
Ronis cylinder lock 1351-500
41940
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge, VRLA, 9AH, 48V DC, 2-Year warranty APCRBCV204
Schneider Electric
NG125L/C 32-1 Modular Power Switch
18781
Schneider Electric
Schneider Electric License upgrade, EcoStruxure EV Charging Expert, dynamic charge management, from 5 to 15 charging stations EVLMSEDB2EDS
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, glazed door, 2000X700X600MM, IP55 NSYSFPN20760TG
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800H, 70KA at 415VAC, 800A, 4P, drawout, manually operated, without control unit C080H4WM
Schneider Electric

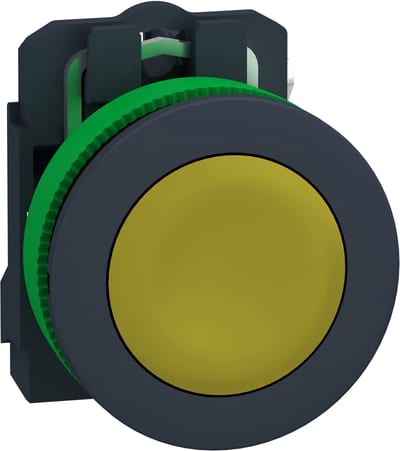

Schneider Electric Push button flush mounted, Harmony XB5, plastic, yellow, 30mm, spring return, unmarked, 1NO XB5FA51
