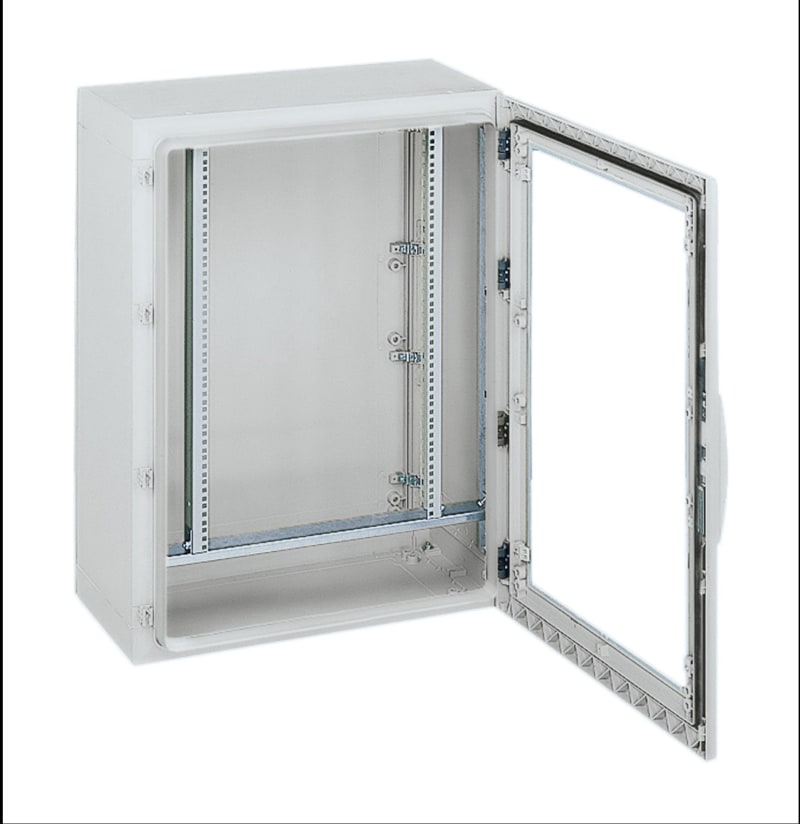

Schneider Electric 19" fixed chassis 17U forPLA enclosure H1000XW750MM NSYBRF17PLAG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYBRF17PLAG 19 fast frame 7035 17u(PLA10x).
Technical Specifications
- Manufacturer part number (MPN)
- NSYBRF17PLAG
- EAN / GTIN
- 3606485405506
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Rack type
- Fixed
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT PLA
- Device composition
- fixing elements; 2 19" uprights
- Quantity per set
- Set of 1
- Number of units 19"
- 17
- Material
- Sheet steel
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- fixing mode
- By fixing element
- Colour
- Grey (RAL 7035)
- Permanent permissible load
- 3 kg per unit
- Height
- Nominal: 1000 mm
- thickness
- 2 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 11.500 cm
- Package 1 Length
- 82.500 cm
- Package 1 Weight
- 4.694 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 30
- Package 2 Height
- 48.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 153.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 750 mm
- Suitable for enclosure building height
- 1000 mm
- Width
- 750 mm
- Max. load capacity
- 3 kg
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606485405506
- SAP 1000752275
- Code 8488128
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Safety terminals section 1X6MM² . Supply : 20 NSYS06
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 10A, B curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P44710
Schneider Electric
Pilot Light Head RED FOR BA9S (ZB5AV04)
Schneider Electric

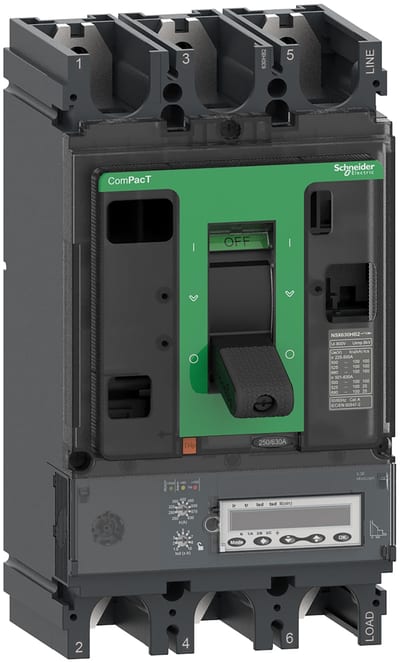

Schneider Electric Circuit breaker, ComPacT NSX630R, 200KA/415VAC, 3 poles, MicroLogic 5.3E trip unit 630A C63R35E630
Schneider Electric

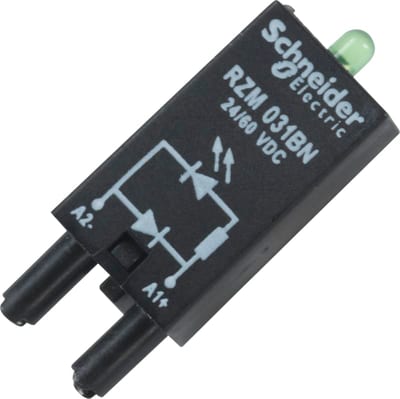

Diode + Green LED 24/60VDC
RZM031BN
Schneider Electric

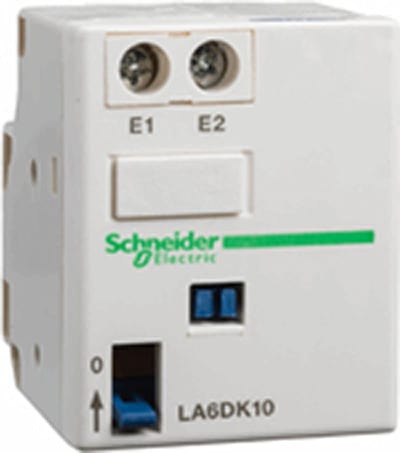

Interlock Block (LA6DK20B)
Schneider Electric

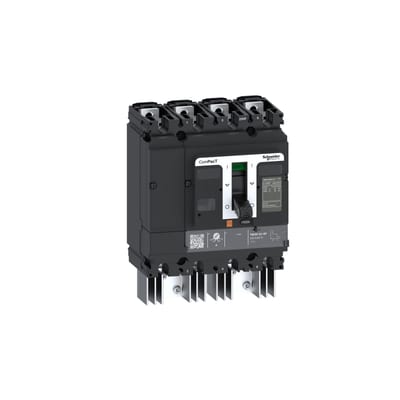

Schneider Electric Circuit breaker, ComPacT NSX250 TM DC EP, 20KA/1500VDC, 4 poles, TM-DC trip unit 200A C25F4TM200D3
Schneider Electric

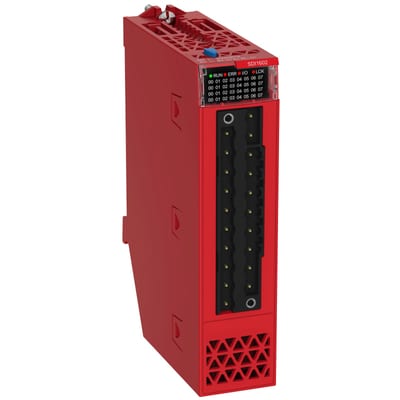

Schneider Electric discrete input module - 16 inputs - 24 V DC positive - Safety BMXSDI1602
