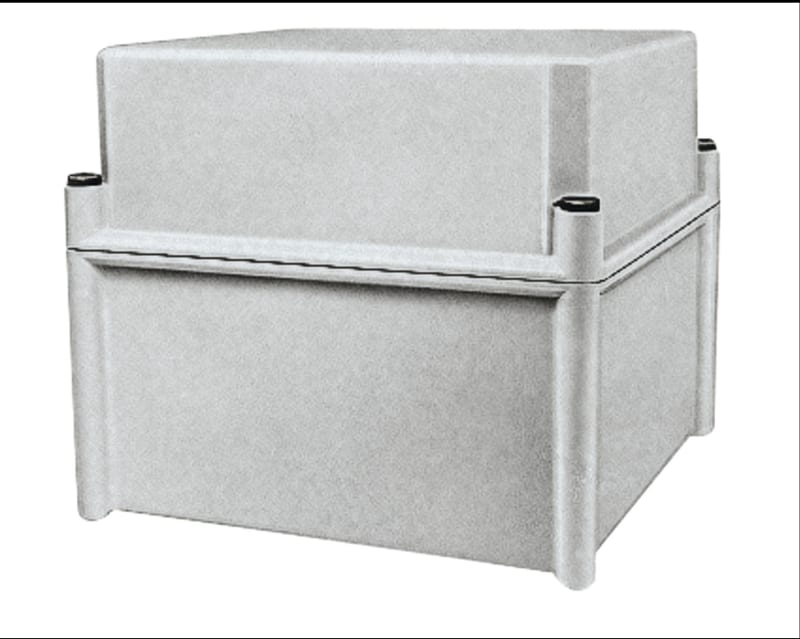

Schneider Electric PLS box, polyester rear, opaque PC cover IP65 36X72X23CM NSYPLSC3672AG

Schneider Electric NSYPLSC3672AG sealed PC PLS 7035 box36x72x23.

Manufacturer part number (MPN)

NSYPLSC3672AG EAN / GTIN: 3606480777196 Sales unit: pcs Package quantity: 20 pcs Range: PanelSeT Product name: PanelSeT PLS Device short name: PLS Enclosure type: Multi-purpose Category: Insulating modular box Nominal height: 360 mm Nominal width: 720 mm Nominal depth: 230 mm Enclosure mounting: Wall mounted Device composition: 1 cover: on enclosure; 1 rear part: on enclosure; locking screws Body type: One piece moulded Type of front cover: High plain cover Lock type: Slot screw Removable parts: Cover locking screw material: Cover: polycarbonate; Rear: polyester reinforced with fibreglass Colour: Body: grey (RAL 7035) Standards: NEMA 4X; NEMA classification 13; IEC 62208 Product certifications: UL Electrical insulation class: Class II IP degree of protection: IP66 conforming to IEC 60529 IK degree of protection: IK09 conforming to IEC 62262 Fire resistance: 960 °C conforming to IEC 62208 Ambient air temperature for storage: -30…70 °C Number of Units in Package 1: 1 Number of Units in Package 2: 20 Country of origin: ES Warranty (in months): 18 Width: 720 mm Height: 360 mm Depth: 230 mm RAL-number: 7035 With mounting plate: No Impact strength: IK09 Degree of protection (IP): IP66

HS Code

9403.70

• EAN 3606480777196
• SAP 1000752691
• Code 8486674
