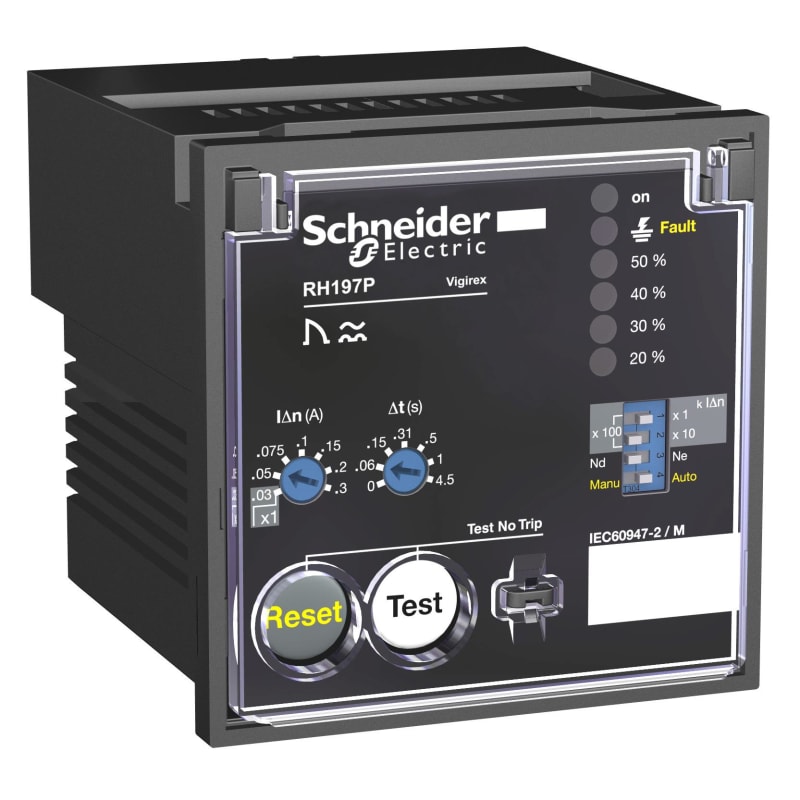

JFR.RH197P 230V prealarm 100%
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 56512 Earth-fault relay Vigirex RH197P 230V prealarm 100% auto or manual reset.
Technical Specifications
- Manufacturer part number (MPN)
- 56512
- EAN / GTIN
- 3606480147760
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Voltage
- 230 V
- Operating voltage AC 50 Hz
- 220–240 V
- Operating voltage AC 60 Hz
- 220–240 V
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 220–240 V
- Supply voltage AC 60 Hz
- 220–240 V
- Current measuring range
- 0.015–60 mA
- Rated switch current
- 8 A
- Rated operating frequency
- 50–400 Hz
- Voltage measuring range
- 0–1000 V
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Clip connection
- Rated control supply voltage AC 50 Hz
- 220–240 V
- Rated control supply voltage AC 60 Hz
- 220–240 V
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For AC-current system
- Rated voltage
- 0–1000 V
- Rated frequency
- 50–400 Hz
- Response value amperage 1
- 0.03–30 mA
- Response value amperage 2
- 0–30000 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 4.82 s
- Indication of difference current
- No
- Error registration possible
- No
- Number of contacts as change-over contact
- 2
- Width
- 72 mm
- Height
- 72 mm
- Depth
- 92 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3606480147760
- SAP 1200502946
- Code 82633540
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive ATV630 - 37KW/50HP - 380...480V - IP21/UL type 1 ATV630D37N4
Schneider Electric
RH99M 12/24VAC 12/48VDC auto
56190
Schneider Electric
Sign flush in plastic with text (ZBYFP2303)
Schneider Electric
Schneider Electric A9F08116 ACTI9 IC60H Miniature Circuit Breaker 1P 16 A, Curve D
Schneider Electric

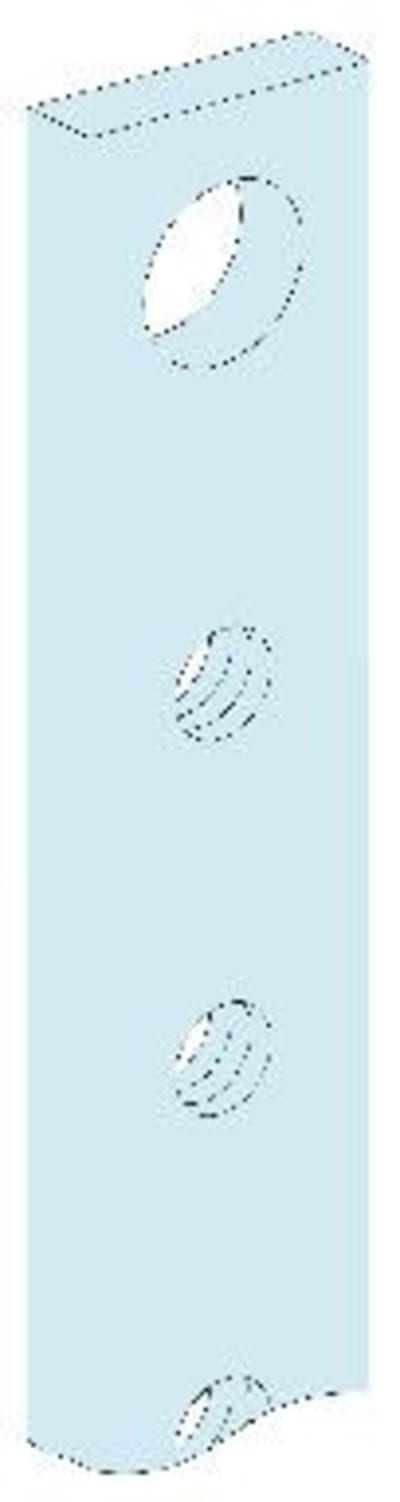

Busbar 400A L1000 G/P
LVS04163
Schneider Electric

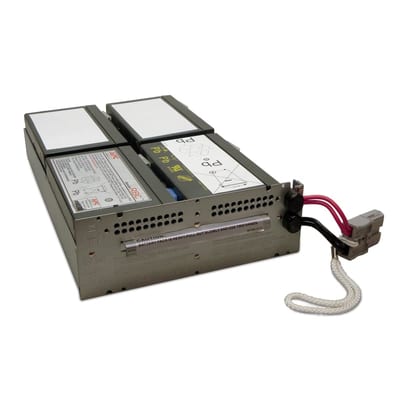

Schneider Electric APC Replacement Battery Cartridge 157 with 2 Year Warranty APCRBC157
Schneider Electric

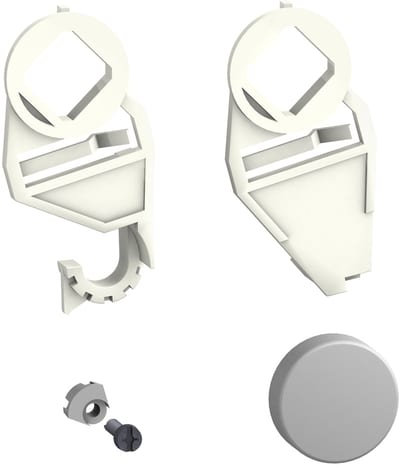

Schneider Electric LV432604 Cylinder Keylock Adapter for Rotary Handle
Schneider Electric

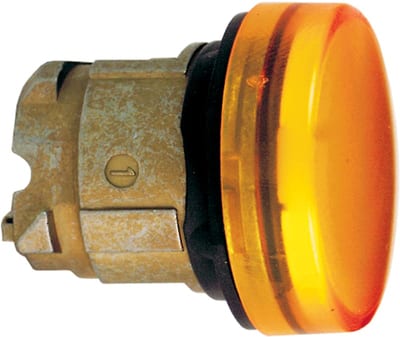

Pilot Light Head Yellow LED for ETIK
