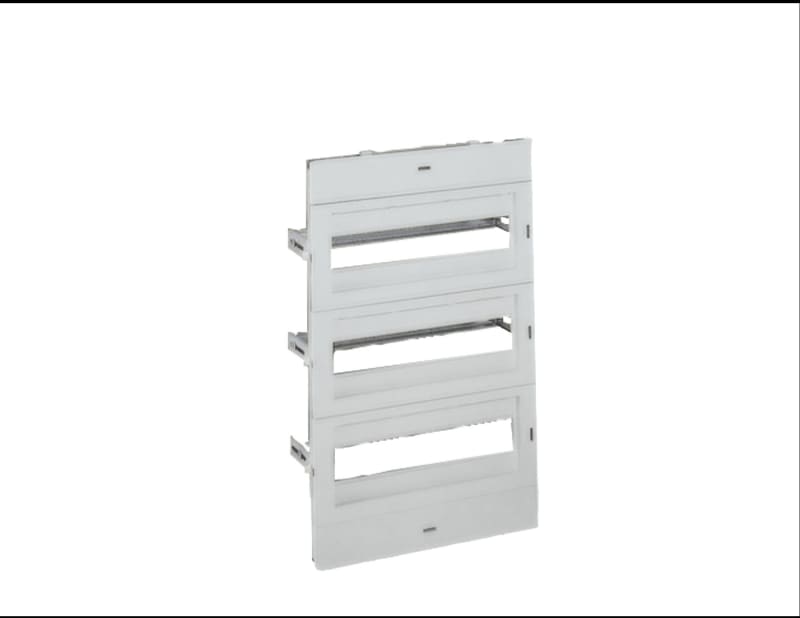

PLM3025 Autoinsats 7035 18M
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYDLPLM18G PLM3025 Automatinsats 7035 18 mod.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLPLM18G
- EAN / GTIN
- 3606480773969
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Modular distribution application; Multi-purpose
- Product or component type
- Chassis
- Device short name
- DL
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT PLM; PanelSeT PHD
- Device composition
- 1 chassis structure; 1 front panel; 2 35 mm DIN rail
- Additional information
- IP2x not respected when chassis is mounted at 67 mm
- Material
- Front panel: self-extinguishing; Rails: galvanised steel
- Colour
- Front panel: grey (RAL 7035)
- Fixing mode
- By fixing element - on front with supports location
- Number of horizontal rows
- 2
- Total number of 18 mm modules
- 18
- Type of front plate
- Cut-out plate
- Number of cut-out
- 2 cut-outs
- Height
- 308 mm
- Width
- 255 mm
- Depth
- 160 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 22.500 cm
- Package 1 Length
- 30.500 cm
- Package 1 Weight
- 928.000 g
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 37.500 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 18.560 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Adaptor kit
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480773969
- SAP 1000752321
- Code 8488246
Product Documentation
More from Schneider Electric
Schneider Electric
Cable Interlock Bracket for Masterpact MTZ2/MTZ3, Spare
LV847926SP
Schneider Electric
Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,18A,230V AC coil,1NO auxiliary contact LC1E1810P7
Schneider Electric
4 pcs. connector with jumper for VW3A8810
VW3M8820
Schneider Electric

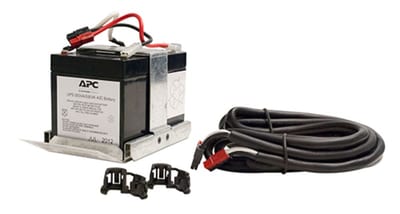

Schneider Electric APC Replacement Battery Cartridge #135 with 2 Year Warranty APCRBC135
Schneider Electric

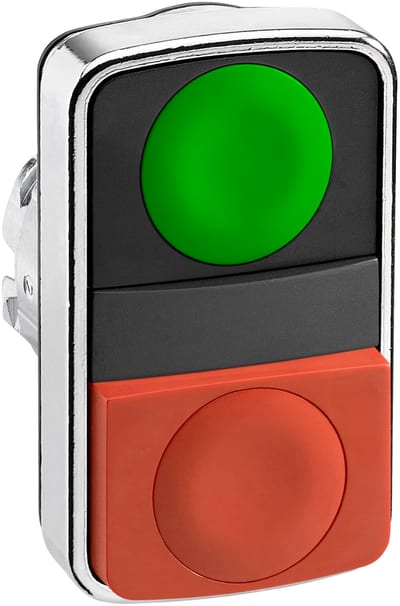

DOUBLE PUSH BUTTON S+r KN. UMRK G+r (ZB4BL7340)
Schneider Electric

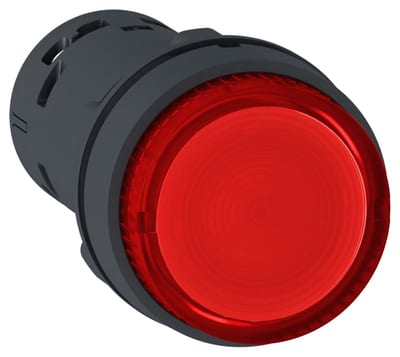

Schneider Electric Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230V AC, 1NC XB7NW34M2
