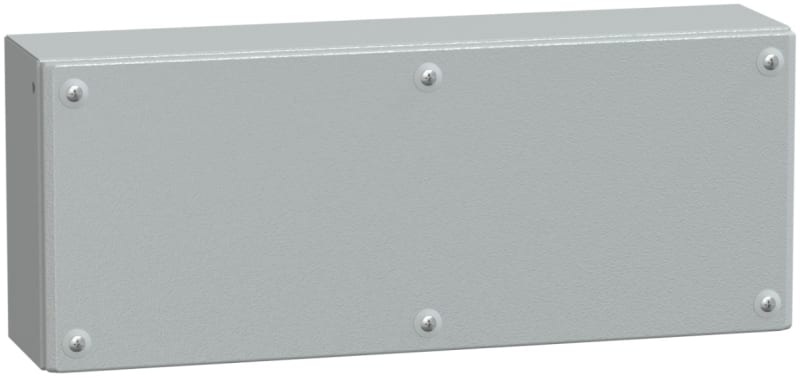

Schneider Electric Metal industrial box plain door H200XW500XD120 IP66 IK10 RAL 7035 NSYSBM205012
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSBM205012 Steel enclosure 200x500x120.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSBM205012
- EAN / GTIN
- 3606480520174
- Sales unit
- pcs
- Package quantity
- 105 pcs
- Dimensions
- 200×500×120
- Range
- PanelSeT
- Product name
- PanelSeT SBM
- Device application
- Multi-purpose
- Category
- Industrial box
- Device short name
- SBM
- enclosure type
- Flat face box
- Enclosure nominal height
- 200 mm
- Enclosure nominal width
- 500 mm
- Enclosure nominal depth
- 120 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 cover; 1 body; 6 cover screw
- Body type
- Single piece body folded and welded
- Type of front cover
- Plain door
- Cover fixing
- Half turn metal screw
- Lock type
- Captive screw PZ2 outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Sheet steel
- Surface finish
- Polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV-GL; UL; BV
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Ambient air temperature for storage
- -35…60 °C
- Operating temperature
- -35…80 °C
- Product weight
- 4.242 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Country of origin
- TN
- Warranty (in months)
- 18
- Shape
- Rectangular
- RAL-number
- 7035
- Connection type
- Screwed terminal
- Length
- 200 mm
- Width
- 500 mm
- Depth
- 120 mm
- Material plate thickness cabinet
- 12 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Halogen free
- Yes
- Degree of protection (IP)
- IP66
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- No
- Circuit integrity
- None
- Impact strength
- IK10
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480520174
- SAP 1000499571
- Code 8615519
