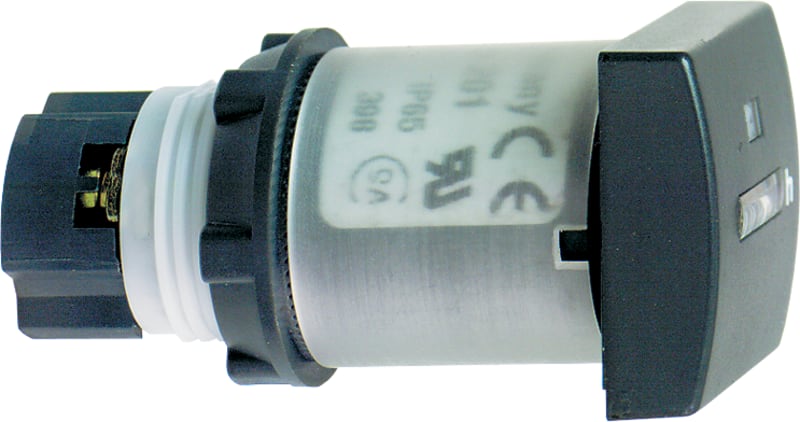

Schneider Electric Hour counter, Harmony XB5, plastic, 22mm, mechanical 5 digit display, 230..240V AC, 60Hz XB5DSM6
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB5DSM6 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Timeteller 0-9999,9 230-240V 60 Hz.
Technical Specifications
- Manufacturer part number (MPN)
- XB5DSM6
- EAN / GTIN
- 3389119021739
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230-240 V
- Frequency
- 60 Hz
- Range of product
- Harmony XB5
- Bezel material
- Dark grey plastic
- Product or component type
- Hour counter
- Mounting diameter
- 22 mm
- Reset
- Without
- [Us] rated supply voltage
- 230...240 V +/- 10 %
- Display digits
- 5
- Current consumption
- 8 mA
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- mounting mode
- Flush-mounted
- Mounting support
- Panel mounting
- Height
- 30 mm
- Width
- 30 mm
- Depth
- 60 mm
- Device presentation
- Monolithic product
- Product weight
- 0.045 kg
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 60536
- IP degree of protection
- IP65 conforming to IEC 60529
- Enclosure Type
- UL type 13
- Standards
- IEC 60947-5-1
- Product certifications
- CE; UL
- Warranty (in months)
- 18
- Mounting method
- Surface and panel mounting
- Model
- Digital
- Count area
- 9999 h
- Reset function
- None
- Operation indication
- Yes
- Number of digits
- 5
- Input voltage
- 230–240 V
- Voltage type
- AC/DC
- Frequency input voltage
- 60 Hz
- Type of drive
- Mains synchronous
- Built-in depth
- 60 mm
- Front plate width
- 30 mm
- Front plate height
- 30 mm
- Diameter panel opening
- 22.5 mm
- Mounting to max. wall thickness
- 6 mm
- Degree of protection (IP)
- IP65
- Country of origin
- France
Standards & Compliance
- HS Code
- 9029.10
Cross References
- EAN 3389119021739
- SAP 1000069096
- Code 8558310
Product Documentation
More from Schneider Electric
Schneider Electric
Inf App.intk 16A 4P+J 400 IP67
83859
Schneider Electric
Frontkapsel (XACB911)
Schneider Electric
Protokollomformer MPOX Sense Edition
FFS00703853
Schneider Electric
Schneider Electric Key switch selector flush mounted, Harmony XB4, metal, black, 30mm, key 455, 2 positions, stay put, 1NO XB4FG21
Schneider Electric

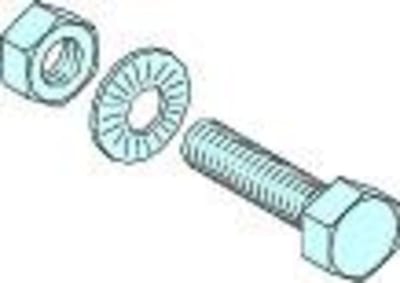

Bolt/nut/WASHER-20STKM8X45 for Rails
LVS04787
Schneider Electric

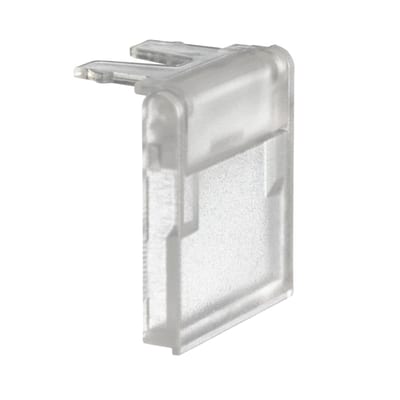

S-One dust cover, mounting box, transparent
WDE002033
Schneider Electric

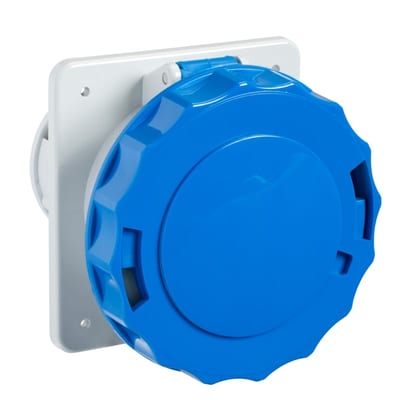

PratiKa Panel Socket Outlet, Straight, 63 A 2P+E
81678
Schneider Electric

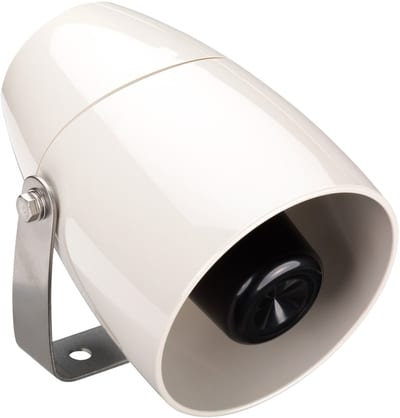

Schneider Electric Multi-sound Siren 120VDC 2 Tones XVS10GMW
