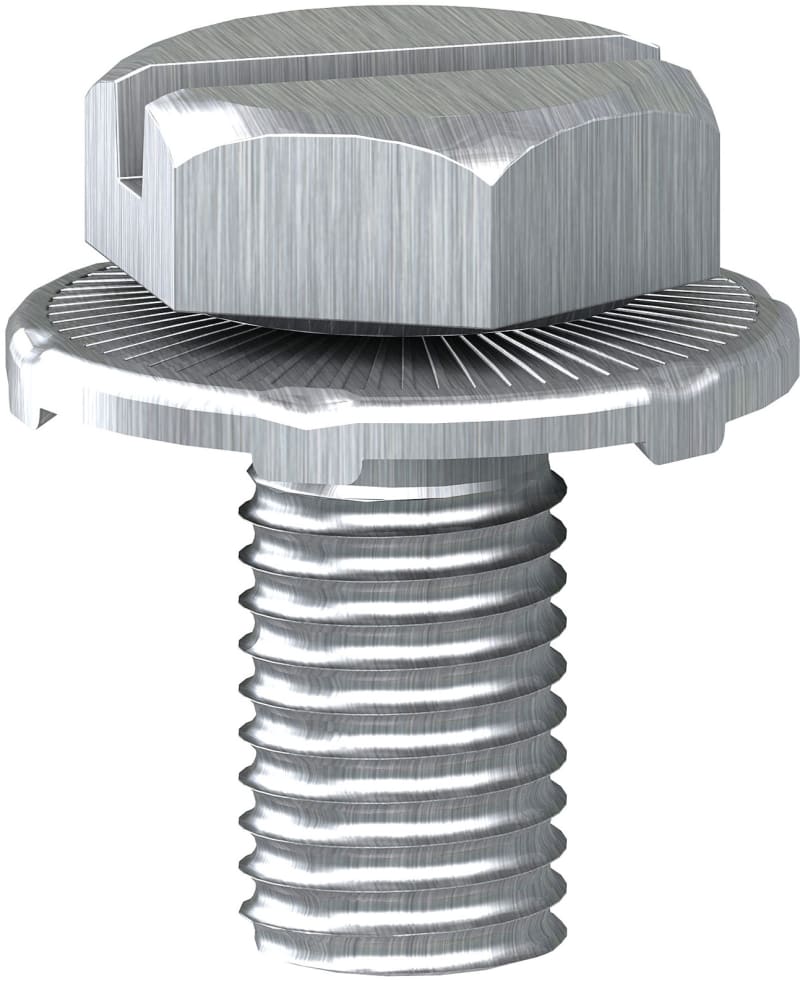

Telequick screw (AF1VA512)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AF1VA512 Telequick screw.
Technical Specifications
- Manufacturer part number (MPN)
- AF1VA512
- EAN / GTIN
- 3389110570168
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Accessory / separate part category
- Mounting accessories
- Quantity per set
- Set of 100
- Head mounting
- M5 x 12
- ISO thread
- M5
- Mounting support
- Asymmetrical DZ5-MB rail; Notched AM1-EC rail; Combination AM1-ED rail; Omega AM1-DP rail; Omega AM1-DE rail
- Product weight
- 0.003 kg
- shape of screw head
- Slotted hexagonal
- Threaded length
- 12 mm
- Provided equipment
- Washer
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Number of Units in Package 3
- 3000
- Country of origin
- IT
- Warranty (in months)
- 18
- Type of material certificate according to EN 10204
- 3.1
- Material
- Steel
- Material quality
- 5.8 (steel)
- Surface protection
- Galvanic/electrolytic zinc plated
- Head form
- Hexagon
- Dimension square neck bolt
- 1.8 mm
- Thread size (metric)
- 5
- Length to bottom side head
- 12.2 mm
- Thread length
- 12 mm
- Screwing system
- Hexagon slotted
- Wrench width
- 1.2 mm
- Pitch thread
- 0.8 mm
- Thread type
- Metric
- Head diameter
- 8 mm
- Head height
- 2.4 mm
- Colour
- Zinc
Standards & Compliance
- HS Code
- 7318.15
Cross References
- EAN 3389110570168
- SAP 1000256751
- Code 81145893
Product Documentation
