Flange with 39 SVEKKINGER-IP55-PRISMASET G
Pricing
Request a quote
We reply within 24 hours
Product Description

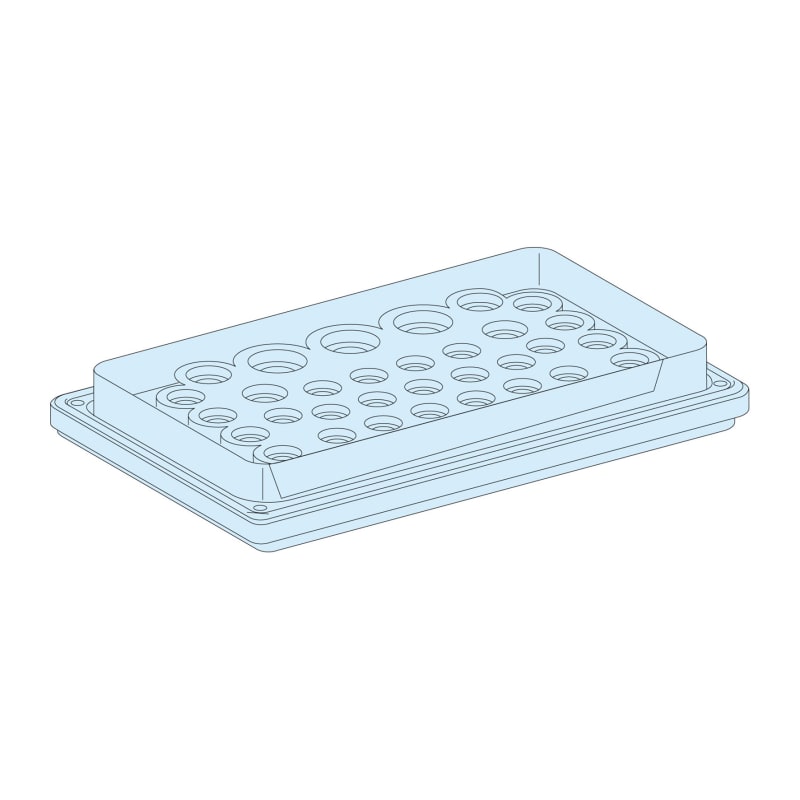

Schneider Electric LVS08898 Flange with 39 svekkinger-7 for 26mm-IP55-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08898
- EAN / GTIN
- 3606481879363
- Sales unit
- pcs
- Package quantity
- 40 pcs
- IP rating
- IP55
- Range of product
- PrismaSeT G
- Range
- PrismaSeT
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Product or component type
- Gland plate
- Accessory / separate part category
- Enclosure accessory
- Product compatibility
- IP55 enclosure
- Enclosure/cubicle description
- Wall-mounted enclosure - width 600 mm
- Type of gland plate
- Knockouts
- Mounting location
- Bottom; Top
- Material
- Insulated material
- Cable entry number
- 3 diameter: 14…26 mm; 4 diameter: 10…20 mm; 32 diameter: 7…16 mm
- Quantity per set
- Set of 1
- Depth
- 180 mm
- Product weight
- 0.36 kg
- Colour
- White (RAL 9003)
- IP degree of protection
- IP55
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 40
- Number of Units in Package 3
- 240
- Warranty (in months)
- 18
- Width
- 225 mm
- Model
- Blind
- Surface protection
- Untreated
- Pre-stamping
- No
- Thread type
- Metric
- Number of connector holes
- 39
- Degree of protection (NEMA)
- 3
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879363
- SAP 1200547422
- Code 82880254
