Schneider Electric Wander plug, Mureva PK, 32A, 3P+E, 380…440V, IP67, 3H PKE32M7C4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKE32M7C4 PratiKa plug - straight - 32 A - 3P + E - 380.440 V AC - IP67.
Technical Specifications
- Manufacturer part number (MPN)
- PKE32M7C4
- EAN / GTIN
- 3303432322021
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 400 V
- IP rating
- IP67
- Rated current
- 32 A
- Range
- Mureva
- Product or component type
- Wander plug
- Device short name
- Mureva plug
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- Plug, socket, control station shape
- Straight
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 380...440 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 3 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Captive screws
- Cable cross section
- 2.5…6 mm²
- cable entry
- Fair lead; Cable gland
- Thread type
- Pg 21
- Product weight
- 0.22 kg
- Height
- 95 mm
- Width
- 95 mm
- Depth
- 152 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP67 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-11
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- 35 °C ( 86400 s ) ; -25…40 °C
- Warranty (in months)
- 18
- Number of poles
- 4
- Material
- Plastic
- Surface treatment contacts
- Nickel-plated
- IEC-amperage
- 32 A
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Phase inverter
- No
- Contact material
- CuZn
- Degree of protection (IP)
- IP67
- Military model
- No
- Clock hour position
- 3 h
- Identification colour
- Red
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3303432322021
- SAP 1200197910
- Code 82140034
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric front connections, 630 A to 1000 A, fixed ComPact NS type N/H/NA, top mounting, 4 poles
33608
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1000X400MM, IP55 NSYSFN201040
Schneider Electric
Toroid FOR GFCIVARSL. 280 X
33573
Schneider Electric
Plug 125A 3P+J 400V IP67
81394
Schneider Electric
Connectionsrail 3P Kit G265-500 (LA9G3751)
Schneider Electric
Schneider Electric LV429354T Mechanical Interlock for ComPacT NSX Toggle
Schneider Electric
END Piece Tir+ ES80/40 White
5427210
Schneider Electric

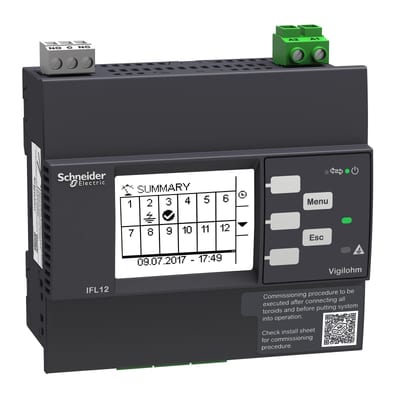

Vigilohm 12CH. LOC. MODB. 110-440VAC/DC
