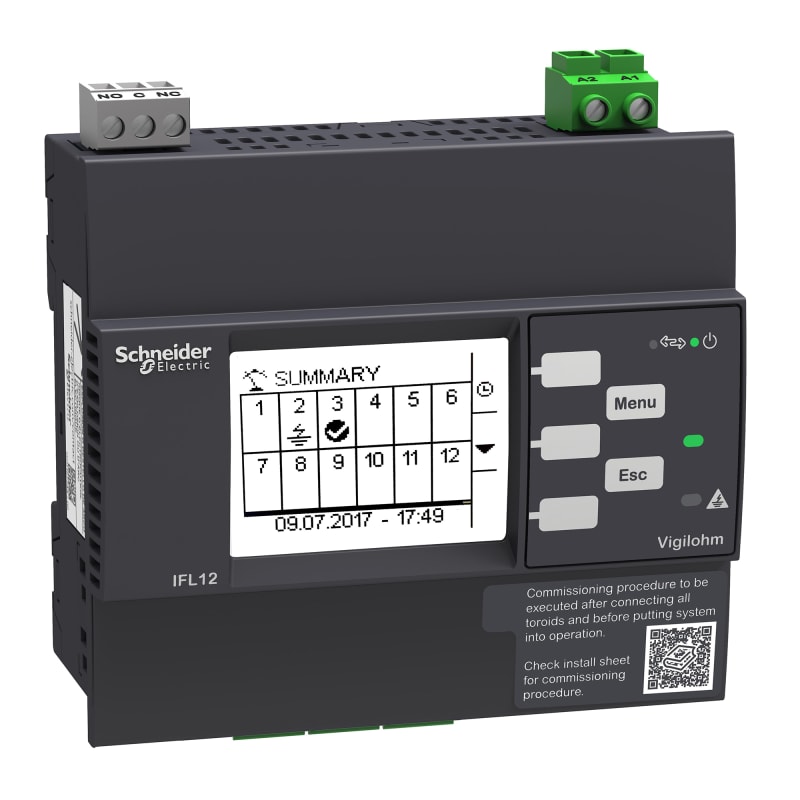

Vigilohm 12CH. LOC. MODB. 110-440VAC/DC

Schneider Electric IMDIFL12C Vigilohm locator 12 channels, 110-440VAC auxiliary voltage, Modbus.

Manufacturer part number (MPN)

IMDIFL12C

EAN / GTIN

3606489504861

Sales unit

pcs

Package quantity

8 pcs

Voltage

110-440 V AC

Range

Vigilohm

Device short name

IFL12C

Product or component type

Insulation fault locator

Earthing system

IT; HRG

Application

Marine and offshore; Industry; Infrastructure; Power generation; Port, airport, railway

Network size

Medium

Electrical circuit type

Power circuit

Network capacitance

Lightly capacitive

Type of network

1P + N; 3P; 3P + N

Network rated voltage

0…1000 V - AC at 45...65 Hz; 0…1000 V - DC

Number of channels

12

Alarm threshold setting

Alarm: high, medium, low

Type of measurement

Network insulation resistance, range: 200 Ohm...250 kOhm

Channel alarm threshold setting

Alarm threshold: common to all feeders

Configurable filtering time

5 s; 40 s

Response time

1 s 1/5th of set filtering time; 8 s 1/5th of set filtering time

Time delay range

0...120 min for alarm

Power quality analysis

Transient capture

Monitoring function

Detection of toroids connection automatic; Detection of toroids connection manual mode; Detection of IM400 injection current permanent

Self-test

Auto test at start and every 5h; Remote test; Manual

Overvoltage category

III 300 V; II 600 V

IP degree of protection

Case: IP20; Front face: IP54

Material

Thermoplastic

Type of installation

Indoor

Operating altitude

<= 3000 m

Relative humidity

5…92 %

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Pollution degree

2

Mounting mode

Clip-on (DIN rail); Flush-mounted (panel)

Mounting position

Horizontal; Vertical

Connections - terminals

Power supply: removable screw terminal block 0.2…2.5 mm²; Output relay: removable screw terminal block 0.2…2.5 mm²; Toroids inputs: removable screw terminal block 0.2…1.5 mm²; Communication: removable screw terminal block 0.2…2.5 mm²

Product weight

0.305 kg

Cut-out dimensions

92 x 104 mm

Height

110 mm

Width

108 mm

Depth

59 mm

Display type

LCD display

User language

Portuguese; Russian; Chinese; French; Spanish; Italian; German; English

Local signalling

Yellow indicator light: insulation fault; Yellow flashing indicator light: communication; Green/red indicator light: product status; Green indicator light: satisfactory insulation; LCD display: transient fault

Signal contacts composition

1 C/O standard or fail-safe

Signalling circuit voltage

250 V - AC at 6 A; 48 V - DC at 1 A

Communication port protocol

Modbus RS485

[Us] rated supply voltage

100...300 V (LN) AC 50/60 Hz tolerance: +/- 15 %; 100...440 V AC 50/60 Hz tolerance: +/- 15 %; 80…120 V (LN) AC 400 Hz tolerance: +/- 15 %; 100...440 V DC tolerance: +/- 15 %

Power consumption in VA

26 VA

Power consumption in W

10 W

Overcurrent protection

1 A

Standards

IEC 60364-4-41; IEC 61010-1; IEC 60364-5-51; IEC 61557-9; IEC 61557-15; IEC 61326-2-4; UL 61010-1

Product certifications

EAC; CE; DNV-GL; UL; cULus

Environmental characteristic

Exposure to damp heat not in service conforming to IEC 60068-2-30; Exposure to damp heat in service conforming to IEC 60068-2-56; Salt mist conforming to IEC 60068-2-52; Long-term storage class 1K22 conforming to IEC 60721-3-1; Transport class 2K11 conforming to IEC 60721-3-2; Stationary use at weather protected locations class 3K24 conforming to IEC 60721-3-3

Mechanical robustness

Long-term storage class 1M11 conforming to IEC 60721-3-1; Transport class 2M4 conforming to IEC 60721-3-2; Stationary use class 3M11 conforming to IEC 60721-3-3

Number of Units in Package 1

1

Number of Units in Package 2

8

Warranty (in months)

18

Type of electric connection

Screw connection

Voltage type for actuating

AC

With detachable clamps

Yes

Function

For mixed system

Line capacity

150 µF

Indication of insulation value

No

Error registration possible

No

Number of contacts as change-over contact

1

Country of origin

India

HS Code

9030.33
