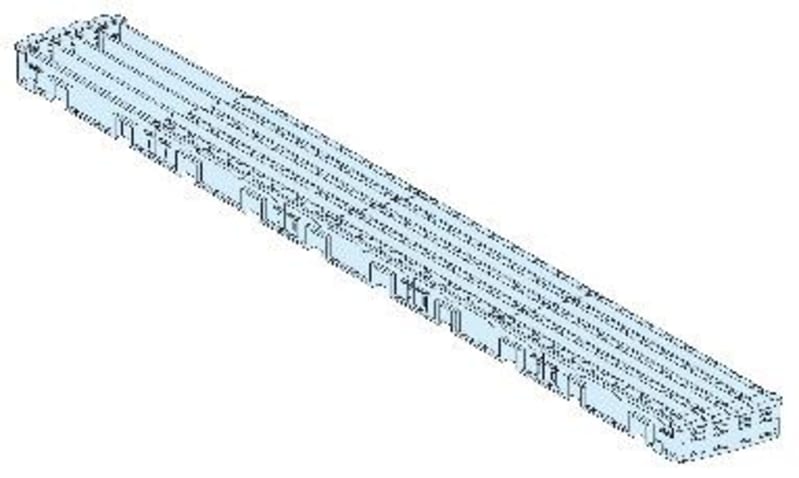

Busbar Linergy BW 125A 3P L750 G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04107 Busbar Linergy BW (Powerclip)-insulated busbar package for PrismaSeT G/P 125A 3P length 750mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04107
- EAN / GTIN
- 3606481871770
- Sales unit
- pcs
- Rated current
- 125 A
- Number of poles
- 3P
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar
- Product name
- Linergy BW
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure
- IP degree of protection
- IPxx B
- Busbar description
- Insulated bar
- Quantity per set
- Set of 1
- Poles description
- 3P
- Installation direction
- Vertical, operating position: rear
- installation description
- Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Pack enclosure
- [Ui] rated insulation voltage
- 500 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 125 A
- [Icw] rated short-time withstand current
- 8.5 kA (1 s)
- [Ipk] rated peak withstand current
- 20 kA
- I²t on activation
- 72250 kA².s
- Permissible current
- 125 A
- Length
- 750 mm
- Height
- 85 mm
- Depth
- 35 mm
- Product weight
- 1.96 kg
- Type of busbar connection
- M6 threaded hole
- Connection pitch
- Connection each 25 mm
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Flat
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 125 A
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 3606481871770
- SAP 1200546576
- Code 82880744
Product Documentation
