Backplate IP55 width 400mm PrismaSeT P
Pricing
Request a quote
We reply within 24 hours
Product Description

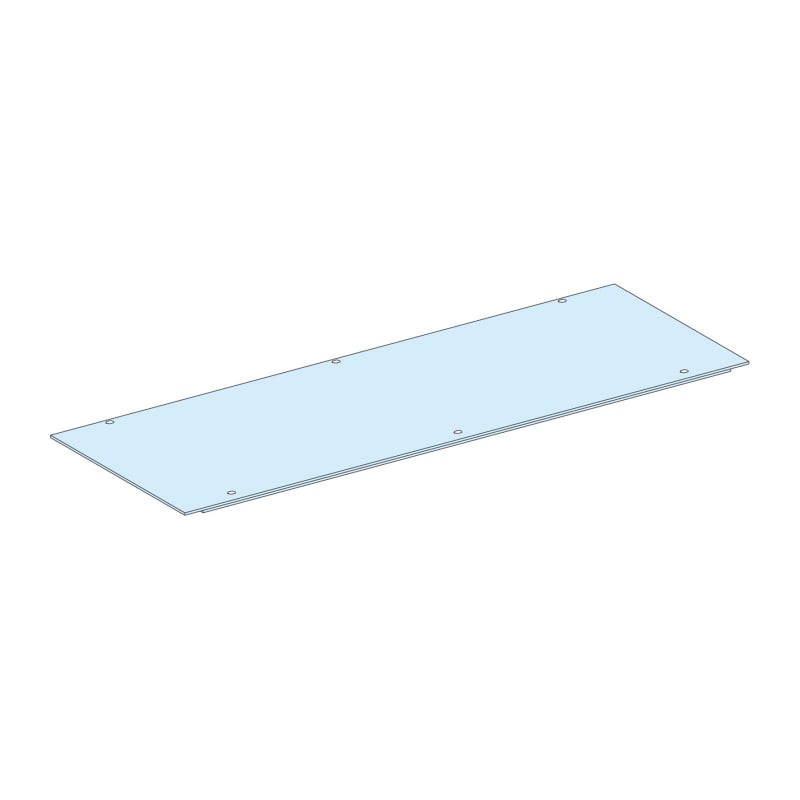

Schneider Electric LVS08744 — Rear panel, PrismaSeT P, for enclosure W 400mm, IP55.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08744
- EAN / GTIN
- 3606481877802
- Sales unit
- pcs
- IP rating
- IP55
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Rear panel
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle - width 400 mm
- Kit composition
- side panel
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 400 mm
- Height
- 2000 mm
- Product weight
- 11.34 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 42.000 cm
- Package 1 Length
- 206.500 cm
- Package 1 Weight
- 11.660 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 30
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 206.500 cm
- Package 2 Weight
- 374.800 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable as side panel
- No
- Suitable as rear panel
- Yes
- Suitable for enclosure building width
- 400 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 40
- With lock
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877802
- SAP 1200547355
- Code 82879668
