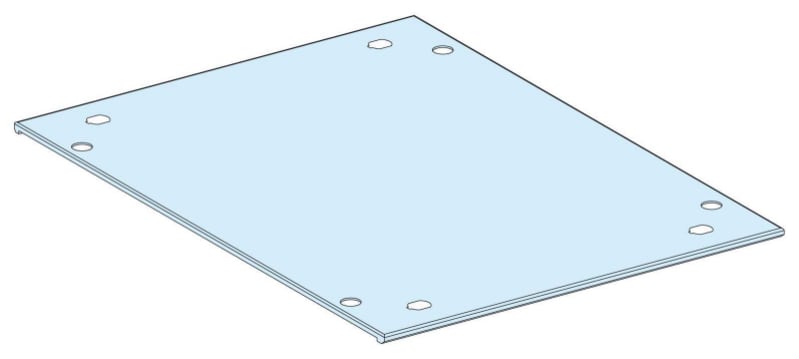

Top plate IP30 PrismaSeT P B300 D600
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08633 Top plate IP30 PrismaSeT P-width 300mm depth 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08633
- EAN / GTIN
- 3606481877499
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Roof
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle duct - width 300 mm, depth 600 mm
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 300 mm
- Depth
- 600 mm
- Product weight
- 2.06 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30 for enclosure
- IK degree of protection
- IK08
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 40.500 cm
- Package 1 Length
- 61.000 cm
- Package 1 Weight
- 2.050 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 30
- Package 2 Height
- 47.000 cm
- Package 2 Width
- 81.000 cm
- Package 2 Length
- 122.500 cm
- Package 2 Weight
- 73.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With cable entry
- No
- Suitable for enclosure building width
- 300 mm
- Suitable for enclosure building depth
- 600 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877499
- SAP 1200547310
- Code 82880406
Product Documentation
More from Schneider Electric
Schneider Electric

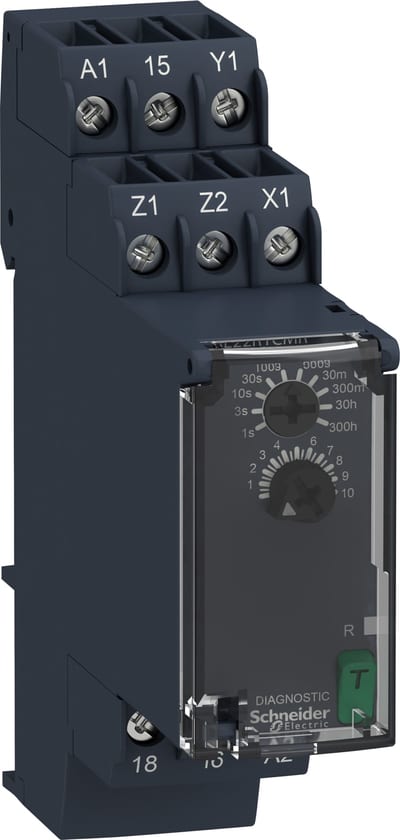

Schneider Electric Off-delay Timing Relay - 0.05S…300H - 24…240V AC/DC - 1C/O RE22R1CMR
Schneider Electric

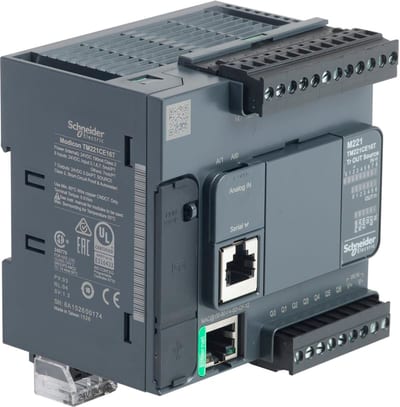

Schneider Electric controller M221 16 IO transistor PNP Ethernet TM221CE16T
Schneider Electric

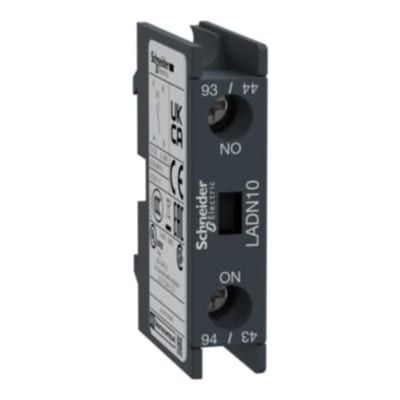

Schneider Electric Auxiliary contact block, TeSys D, 1NO, front mounting, screw clamp terminals LADN10
Schneider Electric

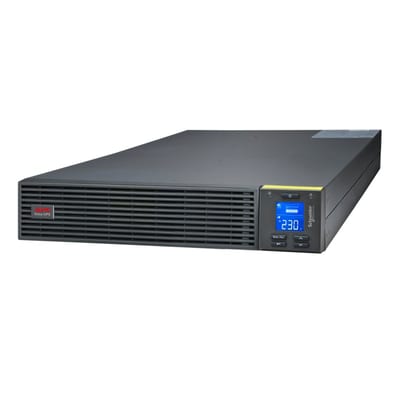

APC Easy UPS SRV RM 5000VA 230
SRVPM5KRI
Schneider Electric

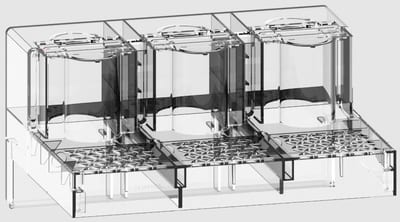

Terminal Cover 3P G630-800
LA9G3703
Schneider Electric

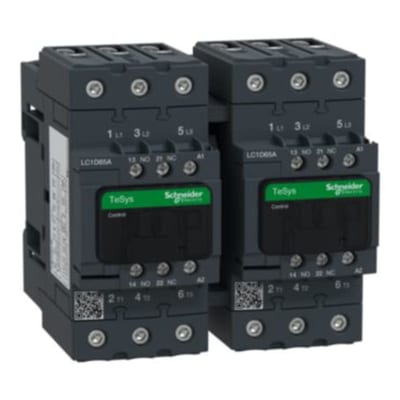

Schneider Electric TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 230 V AC coil LC2D65AP7
Schneider Electric

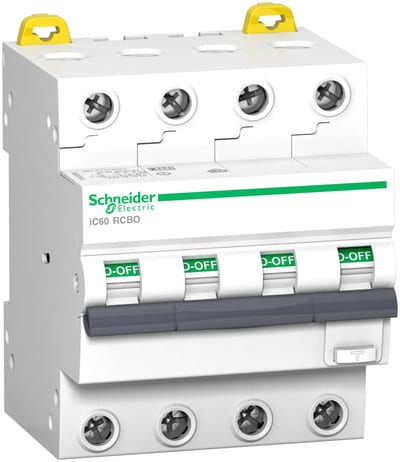

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 4P, 20A, C curve, 6000A/6KA, A-SI type, 30MA A9D77420
Schneider Electric

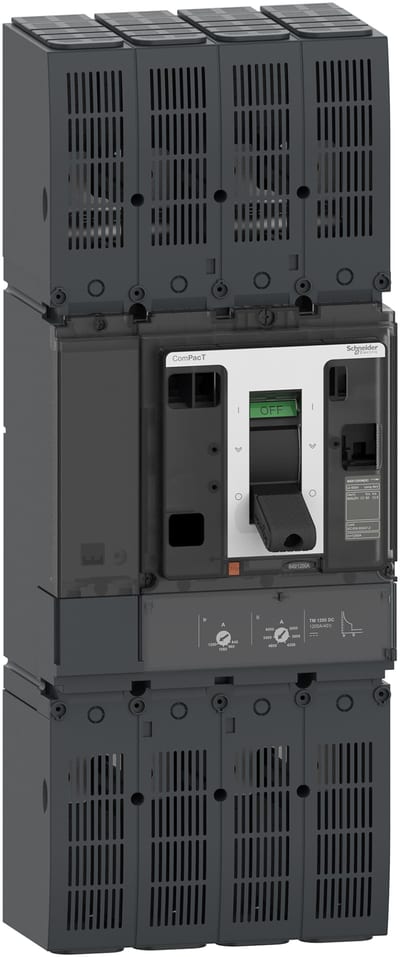

Schneider Electric Circuit breaker, ComPacT NSX1200N DC, 50KA/600VDC, 2 poles, TM-DC trip unit 800A, without bare cable connector C1BN2TM800D
