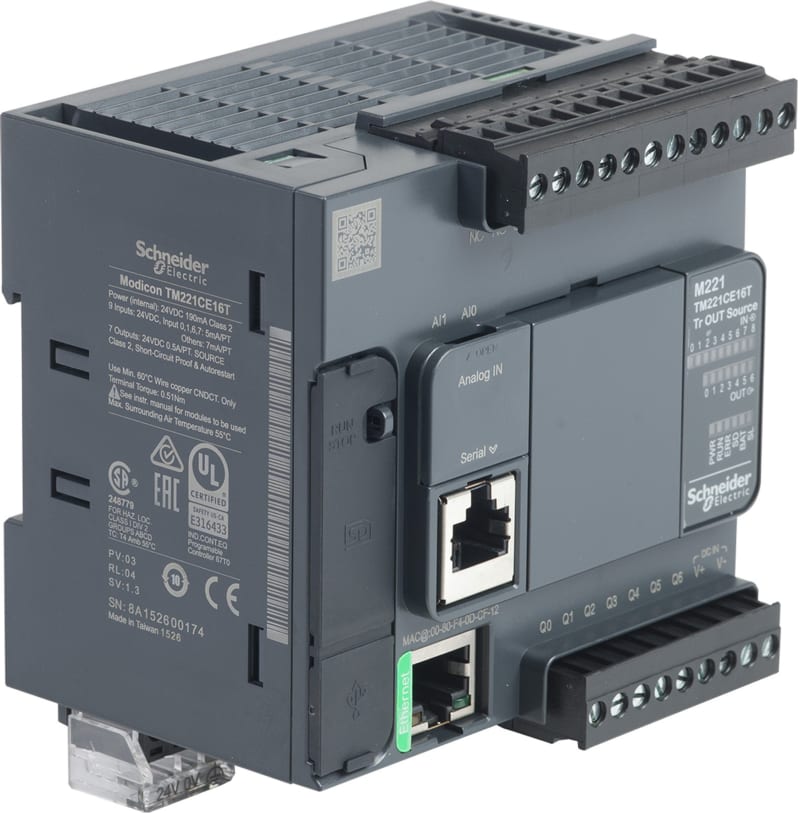

Schneider Electric controller M221 16 IO transistor PNP Ethernet TM221CE16T

Schneider Electric TM221CE16T Modicon M221 - Compact and modular PLS. 16 In/O Compact, Transistor, PNP, Ethernet.

Manufacturer part number (MPN)

TM221CE16T

EAN / GTIN

3606480648762

Sales unit

pcs

Package quantity

20 pcs

Output type

PNP

Range of product

Modicon M221

Product or component type

Logic controller

[Us] rated supply voltage

24 V DC

Discrete input number

9, discrete input 4 fast input conforming to IEC 61131-2 Type 1

Analogue input number

2 at 0...10 V

Discrete output type

Transistor

Discrete output number

7 transistor 2 fast output

Discrete output voltage

24 V DC

Discrete output current

0.5 A

Discrete I/O number

16

Maximum number of I/O expansion module

4 (local I/O-Architecture); 11 (remote I/O-Architecture)

Supply voltage limits

20.4…28.8 V

Inrush current

35 A

Maximum power consumption in W

11 W at 24 V (with max number of I/O expansion module); 4.6 W at 24 V (without I/O expansion module)

Power supply output current

0.325 A 5 V for expansion bus; 0.15 A 24 V for expansion bus

Discrete input logic

Sink or source (positive/negative)

Discrete input voltage

24 V

Discrete input voltage type

DC

Analogue input resolution

10 bits

LSB value

10 mV

Conversion time

1 ms per channel + 1 controller cycle time for analogue input analog input

Permitted overload on inputs

+/- 30 V DC for 5 min (maximum) for analog input; +/- 13 V DC (permanent) for analog input

Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Discrete input current

7 mA for discrete input; 5 mA for fast input

Input impedance

3.4 kOhm for discrete input; 100 kOhm for analog input; 4.9 kOhm for fast input

Response time

35 µs turn-off, I2...I5 terminal(s) for input; 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input; 35 µs turn-on, other terminals terminal(s) for input; 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input; 100 µs turn-off, other terminals terminal(s) for input; 5 µs turn-on, turn-off, Q0...Q1 terminal(s) for output; 50 µs turn-on, turn-off, Q2...Q3 terminal(s) for output; 300 µs turn-on, turn-off, other terminals terminal(s) for output

Configurable filtering time

0 ms for input; 3 ms for input; 12 ms for input

Discrete output logic

Positive logic (source)

Maximum current per output common

3.5 A

Output frequency

100 kHz for fast output (PWM/PLS mode) at Q0...Q1; 5 kHz for output at Q2...Q3; 0.1 kHz for output at Q4...Q6

Absolute accuracy error

+/- 1 % of full scale for analog input

Maximum leakage current

0.1 mA for transistor output

Maximum voltage drop

<1 V

Mechanical durability

20000000 cycles for transistor output

Maximum tungsten load

<12 W for output and fast output

Protection type

Overload and short-circuit protection at 1 A

Reset time

1 s automatic reset

Memory capacity

256 kB for user application and data RAM with 10000 instructions; 256 kB for internal variables RAM

Data backed up

256 kB built-in flash memory for backup of application and data

Data storage equipment

2 GB SD card (optional)

Battery type

BR2032 or CR2032X lithium non-rechargeable

Backup time

1 year at 25 °C (by interruption of power supply)

Execution time for 1 KInstruction

0.3 ms for event and periodic task

Execution time per instruction

0.2 µs Boolean

Exct time for event task

60 µs response time

Maximum size of object areas

512 %M memory bits; 255 %C counters; 512 %KW constant words; 255 %TM timers; 8000 %MW memory words

Realtime clock

With

Clock drift

<= 30 s/month at 25 °C

Regulation loop

Adjustable PID regulator up to 14 simultaneous loops

Positioning functions

Position PTO 2 axe(s)pulse/direction mode (100 kHz); Position PTO 1 axe(s)CW/CCW mode (100 kHz)

Function available

PWM; Frequency generator; PLS

Counting input number

4 fast input (HSC mode) at 100 kHz 32 bits

counter function

Single phase; A/B; Pulse/direction

Integrated connection type

USB port with mini B USB 2.0 connector; Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface ; Ethernet with RJ45 connector

Supply

(serial)serial link supply: 5 V, <200 mA

Transmission rate

1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232; 480 Mbit/s for USB

Communication port protocol

USB port: USB - SoMachine-Network; Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network; Ethernet

Port Ethernet

10BASE-T/100BASE-TX 1 port with 100 m copper cable

Communication service

Modbus TCP client; DHCP client; Modbus TCP slave device; Modbus TCP server; Ethernet/IP adapter

Local signalling

1 LED (green) for PWR; 1 LED (green) for RUN; 1 LED (red) for module error (ERR); 1 LED (green) for SD card access (SD); 1 LED (red) for BAT; 1 LED per channel (green) for I/O state; 1 LED (green) for SL; Ethernet network activity (green) for ACT; Ethernet network link (yellow) for Link (Link Status)

Electrical connection

removable screw terminal block for inputs; removable screw terminal block for outputs; terminal block, 3 terminal(s) for connecting the 24 V DC power supply; connector, 4 terminal(s) for analogue inputs; Mini B USB 2.0 connector for a programming terminal

Maximum cable distance between devices

Shielded cable: <10 m for fast input; Unshielded cable: <30 m for output; Unshielded cable: <30 m for digital input; Unshielded cable: <1 m for analog input; Shielded cable: <3 m for fast output

Insulation

Between input and internal logic at 500 V AC; Between fast input and internal logic at 500 V AC; Non-insulated between inputs; Between output and internal logic at 500 V AC; Non-insulated between analogue input and internal logic; Non-insulated between analogue inputs

Marking

CE

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Depth

70 mm

Width

95 mm

Product weight

0.346 kg

Standards

IEC 61131-2; UL 508; CAN/CSA C22.2 No. 213; IACS E10; ANSI/ISA 12-12-01

Product certifications

EAC; DNV-GL; RCM; ABS; cULus; LR; CE; UKCA; cULus HazLoc

Environmental characteristic

Ordinary and hazardous location

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2; 4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 2 kV (relay output) conforming to IEC 61000-4-4; 1 kV (I/O) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4

Surge withstand

2 kV power lines (AC) common mode conforming to IEC 61000-4-5; 2 kV relay output common mode conforming to IEC 61000-4-5; 1 kV I/O common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5; 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5; 1 kV relay output differential mode conforming to IEC 61000-4-5; 0.5 kV power lines (DC) common mode conforming to IEC 61000-4-5

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6; 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL); 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011; Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011; Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to IEC 55011

Immunity to microbreaks

10 ms

Ambient air temperature for operation

-10…55 °C (horizontal installation); -10…35 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

<= 2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 5…8.4 Hz on symmetrical rail; 3.5 mm at 5…8.4 Hz on panel mounting; 1 gn at 8.4…150 Hz on symmetrical rail; 1 gn at 8.4…150 Hz on panel mounting

Shock resistance

147 m/s² for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

20

Number of Units in Package 3

240

Country of origin

TW

Warranty (in months)

18

Model

Compact

Number of digital inputs

9

Number of digital outputs

7

Number of analogue inputs

2

Voltage type (supply voltage)

DC

Type of memory

RAM

Memory size

512 kByte

Processing time (1K, binary operation)

0.2 ms

Max. number of addressable analogue I/O-ports

114

Max. number of addressable digital I/O-ports

264

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Explosion safety category for gas

None

Explosion safety category for dust

None

Max. number of time switches

255

Performance level according to EN ISO 13849-1

None

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

HS Code

8537.10
