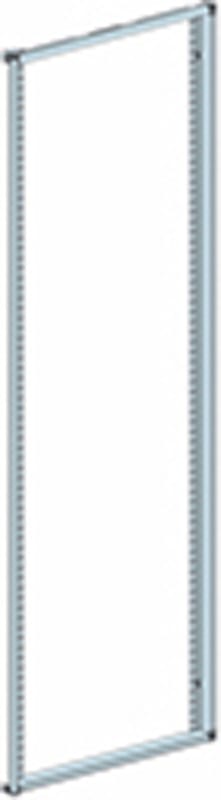

Hinged front plate frame PrismaSeTP B650
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08566 — HINGED FR.PLATE SUP.FRAME W650.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08566
- EAN / GTIN
- 3606481879257
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Hinged front plate support frame
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Enclosure/cubicle description
- Cubicle - width 650 mm; Cubicle - width 650 + 150 mm
- Number of vertical modules [50 mm]
- 36
- Quantity per set
- Set of 1
- Height
- 2000 mm
- Width
- 650 mm
- Product weight
- 5.96 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Standards
- IEC 62208
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.000 cm
- Package 1 Width
- 60.000 cm
- Package 1 Length
- 190.500 cm
- Package 1 Weight
- 6.588 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 30
- Package 2 Height
- 96.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 342.640 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Swing frame
- Suitable for enclosure building width
- 650 mm
- Suitable for enclosure building height
- 2000 mm
- Depth
- 40 mm
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481879257
- SAP 1200547298
- Code 82879708
Product Documentation
More from Schneider Electric
Schneider Electric

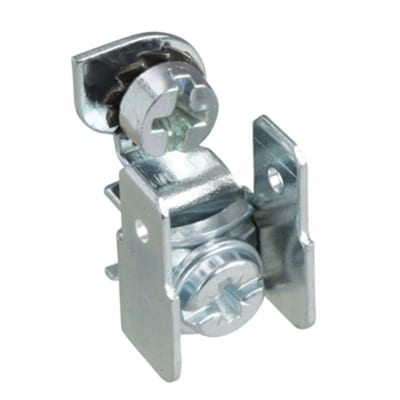

TTI-JB Earth clamp (5590500)
Schneider Electric

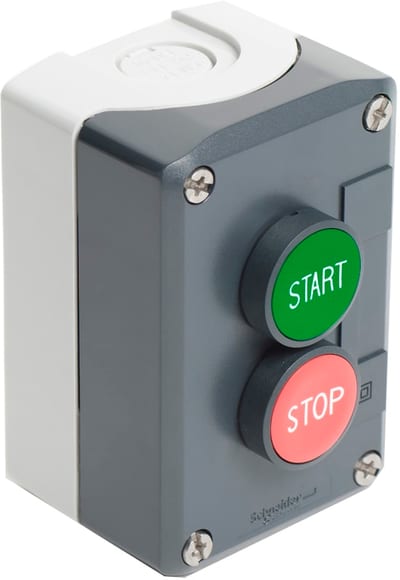

Schneider Electric XALD215 Control station, plastic, dark grey lid, 2 flush push buttons Ø22, marked START STOP, 1 NO + 1 NC
Schneider Electric

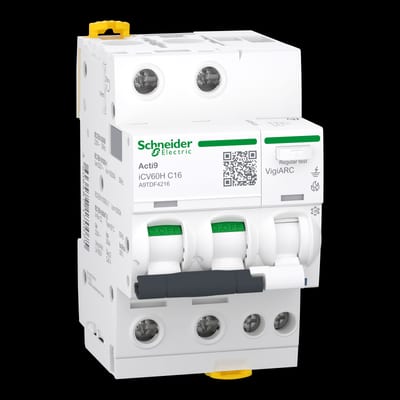

ACTI9 ICV60H ARC 2P C 16A 30MA RCBO AFDD
A9TDF4216
Schneider Electric

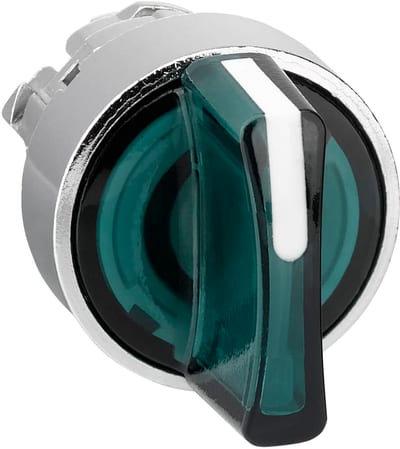

Selector switch with LIGHT 3ST.GREEN LED (ZB4BK1333)
Schneider Electric

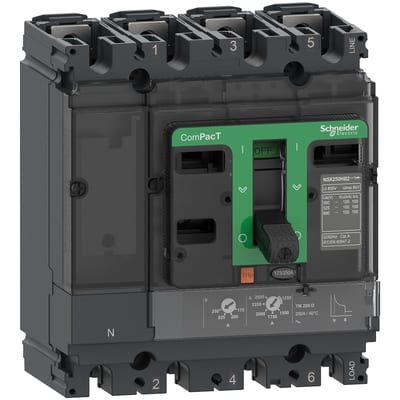

Schneider Electric Circuit breaker, ComPacT NSX160N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 160A C16N4TM160
Schneider Electric
Schneider Electric NSYCAG125LPF outlet grille plastic cut out 125X125MM ext dim 137X117MM IP54
Schneider Electric

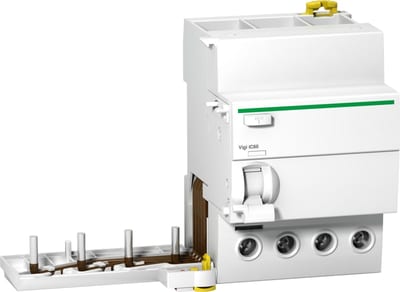

VIGI IC60H 4P 63A 100MA A-KL
A9W22463
Schneider Electric

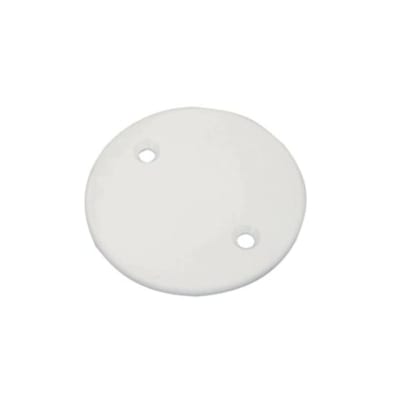

Surface-mount cover PBL 38 plate for PV
