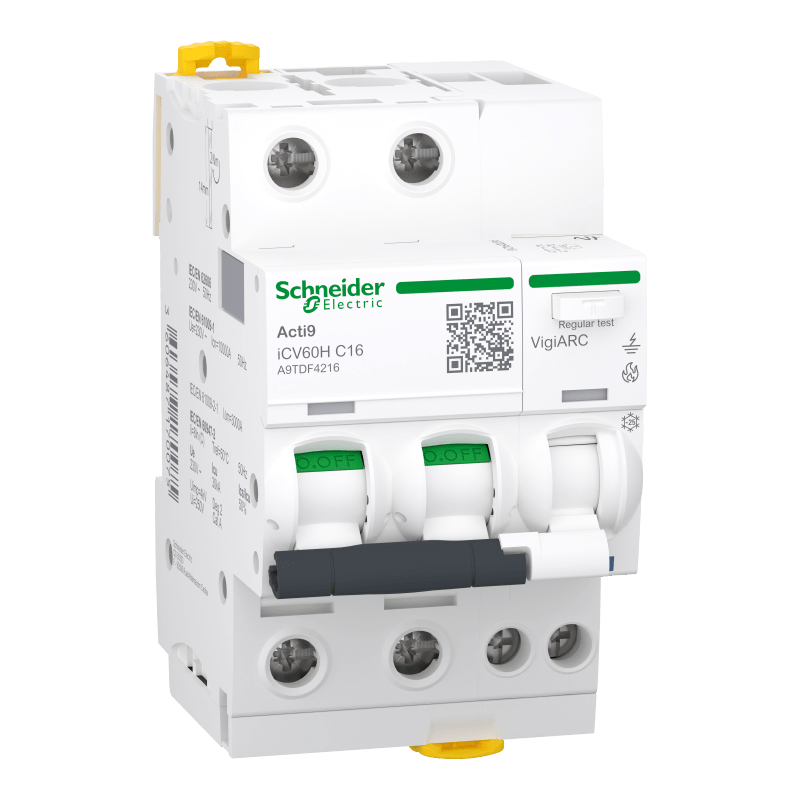

ACTI9 ICV60H ARC 2P C 16A 30MA RCBO AFDD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9TDF4216 Residual current circuit breaker with overcurrent with arc-fault protection,, Acti9 iCV60 ARC, 2P, 16A, C curve, 30mA, type A-SI, 10000A.
Technical Specifications
- Manufacturer part number (MPN)
- A9TDF4216
- EAN / GTIN
- 3606487170075
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 17 pcs
- Rated current
- 16 A
- Number of poles
- 2P
- Rated voltage
- 230 V
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Frequency
- 50 Hz
- Release characteristic
- C
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 3
- Built-in depth
- 44 mm
- Additional equipment attached at delivery
- Fire protection switch
- Control voltage type auxiliary equipment
- AC
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Voltage type
- AC
- Rated insulation voltage Ui
- 250 V
- Power loss
- 2.65 W
- Number of protected poles
- 2
- Rated impulse withstand voltage Uimp
- 4 kV
- Disconnection characteristic
- Undelayed
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606487170075
- SAP 1200768942
- Code 83924232
