Ventilated toppl. IP30 Prisma P B650 D400
Pricing
Request a quote
We reply within 24 hours
Product Description

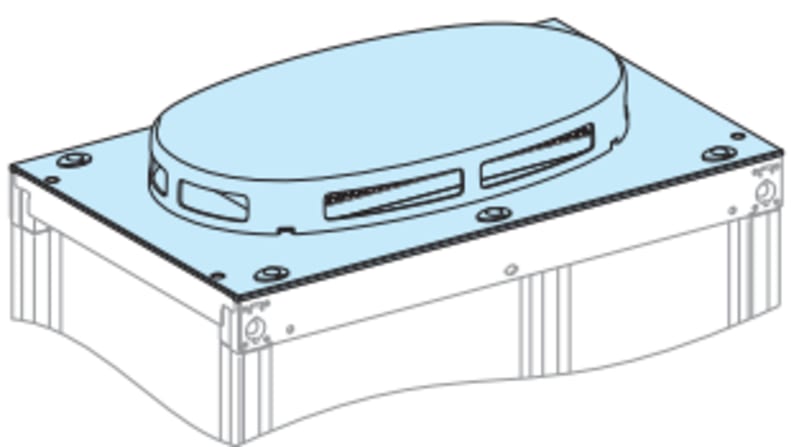

Schneider Electric LVS08476 Ventilated top plate IP30 for PrismaSeT P-width 650mm depth 400mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08476
- EAN / GTIN
- 3606481884534
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Ventilated roof
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle - width 650 mm, depth 400 mm
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 650 mm
- Depth
- 400 mm
- Product weight
- 3.82 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30 for enclosure
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Warranty (in months)
- 18
- Height
- 95 mm
- RAL-number
- 9003
- With cable entry
- No
- Suitable for enclosure building width
- 650 mm
- Suitable for enclosure building depth
- 400 mm
- With de-aeration
- Yes
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481884534
- SAP 1200547572
- Code 82879117
Product Documentation
More from Schneider Electric
Schneider Electric
Ventilated Front plate IP30 3M PrismaSeT G/P
LVS03895
Schneider Electric
Schneider Electric 4 Digital output expansion modules with spring term XPSMCMDO0004SG
Schneider Electric
Schneider Electric Preventa XPSUAK Safety Relay Cat. 4 48-240 V AC/DC Spring Terminals
XPSUAK32AC
Schneider Electric
Schneider Electric switch disconnector Masterpact MTZ2 12 HF, 1250 A, 4 poles, fixed LV848041
Schneider Electric
Push-button, flush, for LED, red, raised (ZB5FH43)
Schneider Electric
Push-button flush white (ZB4FH01)
Schneider Electric
Schneider Electric basic keypad door mounting kit VW3A1114
Schneider Electric

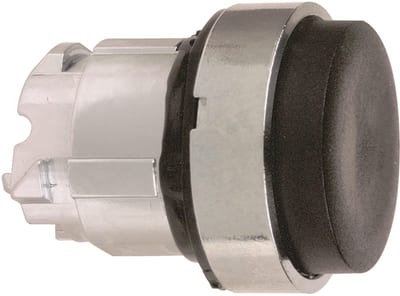

Push-Button Head Pressure/Pressure Black (ZB4BH2)
