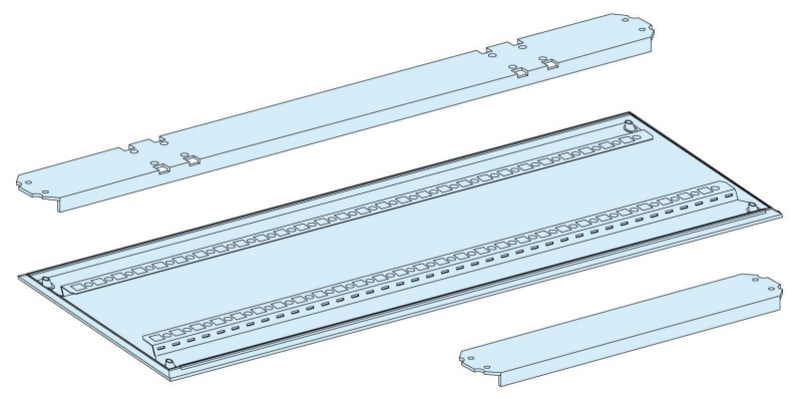

Schneider Electric Enclosure, PrismaSeT G, wall mounted/floor standing, without plinth, 7M, W600MM, H450MM, IP55 LVS08302

Schneider Electric LVS08302 Wall-mount cabinet PrismaSeT G-630A-IP55 9 modules-width 600mm.

Manufacturer part number (MPN)

LVS08302

EAN / GTIN

3606481876508

Sales unit

pcs

IP rating

IP55

Modular width

7 modules

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Enclosure

Device application

Low voltage electrical distribution

Enclosure type

Functional enclosure delivered in kit form; Weatherproof enclosure; Metal enclosure; Indoor enclosure

Enclosure/cubicle description

Wall-mounted enclosure - width 600 mm

Kit composition

uprights; rear plate; 2 side panel; top plate; bottom plate; 4 mouting bracket

Additional information

Can be combined side by side and one on top of another

type of front plate

Without to be ordered separately

Number of vertical modules [50 mm]

7

Number of 18 mm modules per row

24

Standards

IEC 61439-1; IEC 61439-2; IEC 62208

Product certifications

ASTA; EAC

[Ui] rated insulation voltage

1000 V on main rear busbars conforming to IEC 61439-2

Network frequency

50/60 Hz

[In] rated current

630 A at 40 °C conforming to IEC 61439-2

Short-circuit current

50 kA

[Icw] rated short-time withstand current

25 kA 1 s conforming to IEC 61439-1

[Ipk] rated peak withstand current

53 kA conforming to IEC 61439-1

Electrical insulation class

Class I

Material

Treated sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Textured; Matt

Colour

White (RAL 9003)

Width

575 mm

Height

450 mm

Depth

260 mm

Product weight

13.04 kg

IP degree of protection

IP55 with door

IK degree of protection

IK10 with door

Mechanical robustness

Seismic tests - 2.5G conforming to IEC 60068-2-57

Warranty (in months)

18

RAL-number

9003

With mounting plate

No

Suitable for wall mounting

No

Pre-stamping

No

EMC-version

No

With glazed door

No

Couplable

No

Impact strength

IK10

Degree of protection (IP)

IP55

Suitable for outdoor set-up

No

Suitable for metrical mounting

Yes

Mounting plate depth-adjustable

No

Connectable

Yes

With ventilation door

No

Wall fastening possible

Yes

Surface finishing

Powder coating

With rear door

No

Suitable for wall built-in

No

With cover

No

With door

No

Pitched roof

No

Pole fastening

No

Transparent cover

No

Suitable for outdoor installation

No

Floor standing wall model

No

Freestanding

No

Corner model

No

Intermediate mounting

No

Country of origin

Tunisia

HS Code

7326.90
