Transparent door PrismaG B600 27MOD-IP30
Pricing
Request a quote
We reply within 24 hours
Product Description

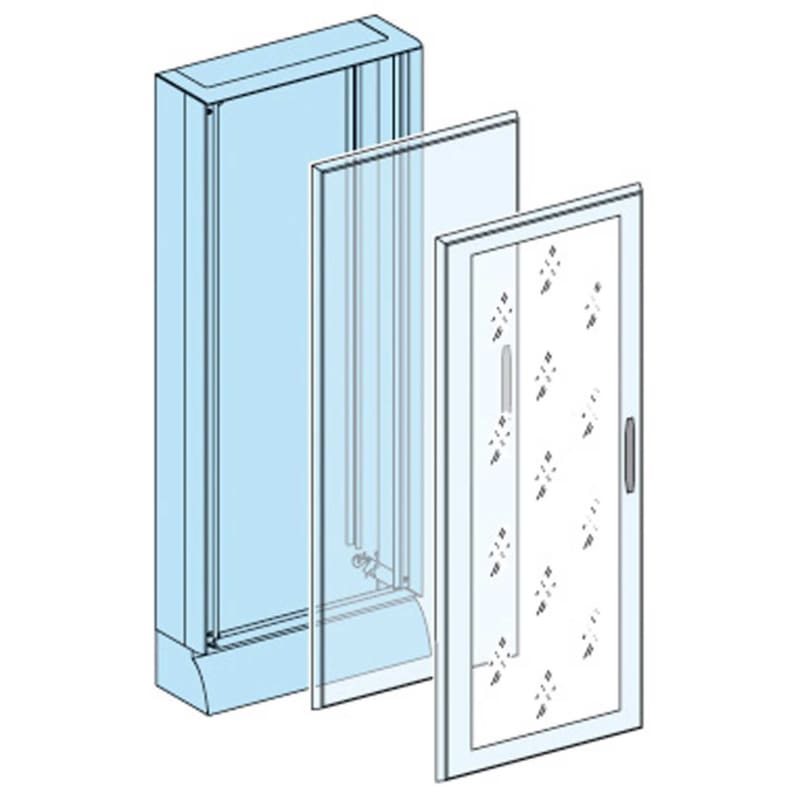

Schneider Electric LVS08232 Transparent door PrismaSeT G floor-and wall-mount cabinet 27-modules width 600mm-IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08232
- EAN / GTIN
- 3606481878243
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 27 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 3 hinge
- type of door
- Transparent
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 600 mm; Extension enclosure - width 600 mm
- Door opening side
- Reversible
- Number of locks
- 3
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 27
- Enclosure material
- Handle: polyamide; Glass; Cover frame: treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1366.6 mm
- Width
- 600 mm
- Depth
- 33 mm
- Product weight
- 9.86 kg
- Material
- Glass
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK08 conforming to EN/IEC 62262
- Standards
- IEC 61439-1; IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Degree of protection (IP)
- IP40
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878243
- SAP 1200547479
- Code 82879780
Product Documentation
