F2-HOR.-FRONT/rear display 4000A W400 D600

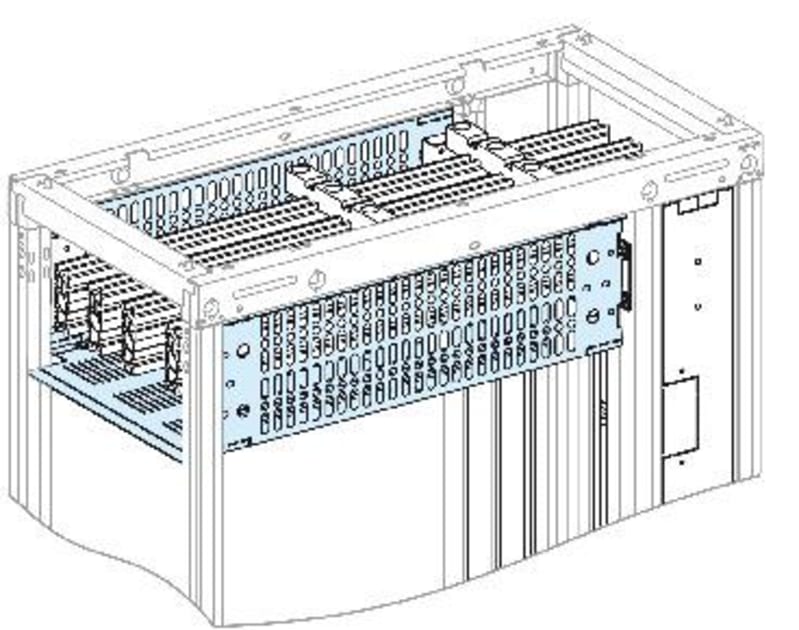

Schneider Electric LVS04964 Form 2-front and rear display for horizontal mounted rail- H4 modules-4000A-B400mm-D600mm-PrismaSeT.

Manufacturer part number (MPN)

LVS04964 EAN / GTIN: 3606481880000 Sales unit: pcs Rated current: 4000 A Range: PrismaSeT Range of product: PrismaSeT P Product or component type: Partition Accessory / separate part category: Insulation accessory Range compatibility: PrismaSeT PrismaSeT P enclosure; Linergy Linergy BS busbar; Linergy Linergy LGYE busbar Product specific application: To partition horizontal busbars Cubicle partitioning form: Form 2 Enclosure/cubicle description: Cubicle 4000A installation description: Cubicle 4000A - width 400 mm, depth 600 mm Enclosure/cubicle width: 400 mm Product destination: For 600 mm deep framework Cubicle depth: 600 mm Height: 200 mm Surface finish: Powder coated; Textured; Matt Protective treatment: Electrophoresis treatment and hot-polymerised polyester epoxy powder Colour: White (RAL 9003) Product weight: 2.64 kg Number of Units in Package 1: 1 Number of Units in Package 2: 44 Warranty (in months): 18 Suitable for enclosure building width: 400 mm Suitable for enclosure building depth: 600 mm Surface finishing: Powder coating RAL-number: 9003 With cable entry: No With lock: No Construction type: Individual part For internal separation form 2a: No For internal separation form 2b: No For internal separation form 3a: No For internal separation form 3b: No For internal separation form 4a: No For internal separation form 4b: No Country of origin: United Kingdom

HS Code

7326.90

• EAN 3606481880000
• SAP 1200547196
• Code 82879180
