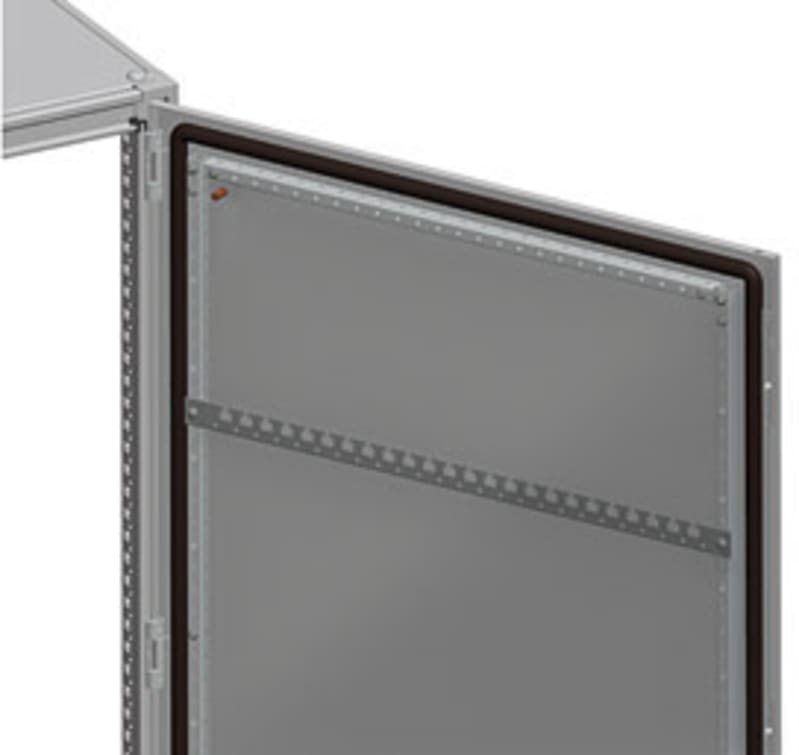

Schneider Electric PanelSeT SF Door Cable-Guide Cross Rails Width 600 mm

Schneider Electric NSYSDGCR6 is a set of door cable-guide cross rails, 600 mm nominal width, for PanelSeT SF, SFN, SM, SFX and SMX enclosures. The galvanised steel rails mount on the door reinforcement frame with 25 mm height adjustment and 450 mm fixing centres. Supplied with fixings and two cross rails.

Manufacturer part number (MPN)

NSYSDGCR6

EAN / GTIN

3606485131405

Sales unit

pcs

Range

PanelSeT

Product or component type

Door cable-guide cross rail

Application

Multi-purpose

Nominal dimensions of the housing

-

Mounting location

On door reinforcement frame

Range compatibility

PanelSeT SF SF, SM, SFX and SMX enclosures

Device composition

Fixing elements; 2 x cross rails

Quantity per set

Set of 1

Material

Steel

Surface finish

Galvanized

Adjustment

Adjustable in height every 25 mm for on door reinforcement frame

Height

30 mm

Width

Nominal: 600 mm; Fixing centers: 450 mm

Depth

13 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

7.000 cm

Package 1 Length

56.000 cm

Package 1 Weight

542.000 g

Unit Type of Package 2

PAL

Number of Units in Package 2

35

Package 2 Height

40.000 cm

Package 2 Width

37.500 cm

Package 2 Length

120.000 cm

Package 2 Weight

18.970 kg

Country of origin

FR

Warranty (in months)

18

Model

Cable guard rail

Suitable for 19 inch mounting

No

Number of height units

12

HS Code

7326.90
