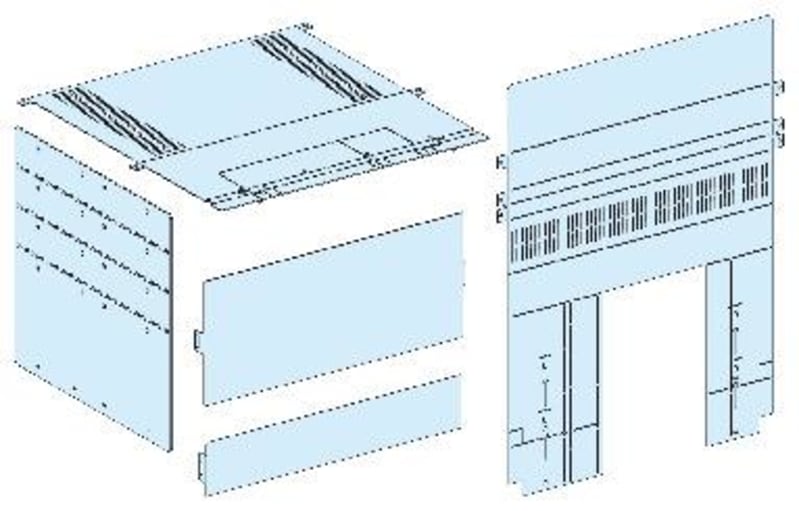

Schneider Electric Rear Horiz. Connection Cover NS-MTZ1/NT PrismaSet P LVS04854
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04854 Baksidetilkoblingsdeksel for NS/MTZ1 withdrawable in PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04854
- EAN / GTIN
- 3606481880192
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Rear connection cover
- Accessory / separate part category
- Interface accessory
- Range compatibility
- PrismaSeT PrismaSeT P framework
- Cubicle partitioning form
- Form 1
- installation description
- Cubicle
- Installed device
- Vertical drawout NS630b...1600; Vertical fixed + drawout NT06...16
- Quantity per set
- Set of 1
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Product weight
- 9.92 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.5 cm
- Package 1 Width
- 64.0 cm
- Package 1 Length
- 83.5 cm
- Package 1 Weight
- 9.55 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 10
- Package 2 Height
- 66.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 107.0 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481880192
- SAP 1200547168
- Code 82880275
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X1250X420 IP44 NSYPLAZT7124G
Schneider Electric
Schneider Electric variable speed drive ATV12 - 0.75kW -1hp -200..240V -1PH -w heat sink-lot of 14 ATV12H075M2TQ
Schneider Electric
Schneider Electric Terminal extensions, ComPacT NSX 100/160/250, double L, set of 4 parts LV429222
Schneider Electric
Push-button head, push/push, green
ZB4BH3
Schneider Electric
2 Plinth sides 400X200
NSYSPS4200SD
Schneider Electric

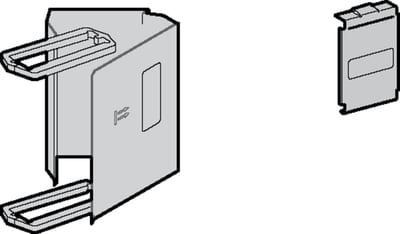

IP54-COVER, Outlet (KSE80YB2)
Schneider Electric

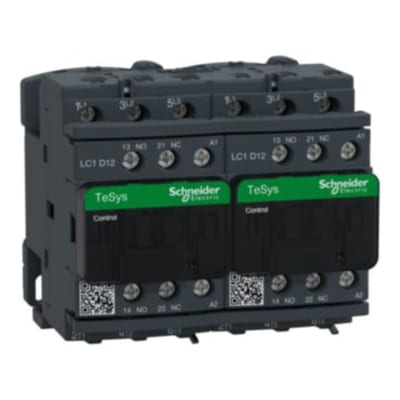

Reversing contactor. 12A 110VAC
