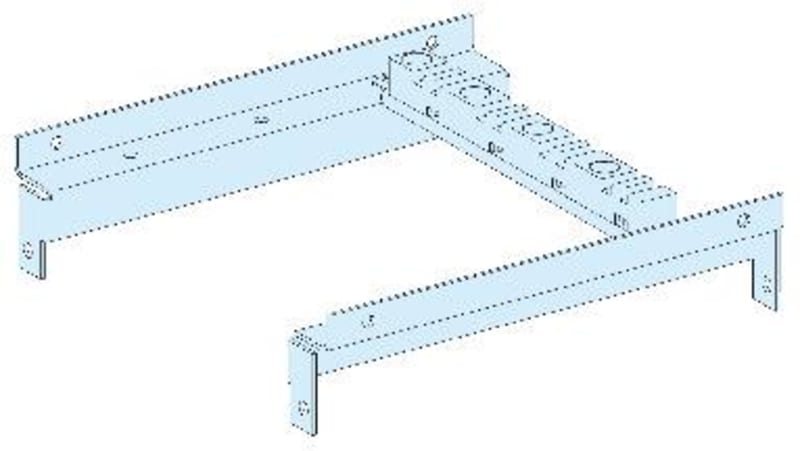

Schneider Electric LVS04666 Linergy BS Bottom Lateral Busbar Support W300
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04666 is a bottom lateral busbar support from the Linergy BS range, sized for 5/10 mm bars in the 300 mm wide cable field of PrismaSeT P enclosures. Supports 4-pole configurations rated up to 4000 A with 75 mm busbar spacing. Certified to IEC 61439-1/-2 and ASTA.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04666
- EAN / GTIN
- 3606481867155
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar support
- Product name
- Linergy BS
- Range compatibility
- Linergy Linergy LGYE busbar; Linergy Linergy BS busbar; PrismaSeT PrismaSeT P enclosure
- Product compatibility
- Busbar support
- Cubicle-device connection
- Linergy BS lateral busbar; Linergy LGYE lateral busbar
- installation description
- Cubicle duct - width 300 mm
- Product weight
- 1 kg
- Quantity per set
- Set of 1
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 40
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 4000 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481867155
- SAP 1200547019
- Code 82879217
Product Documentation
