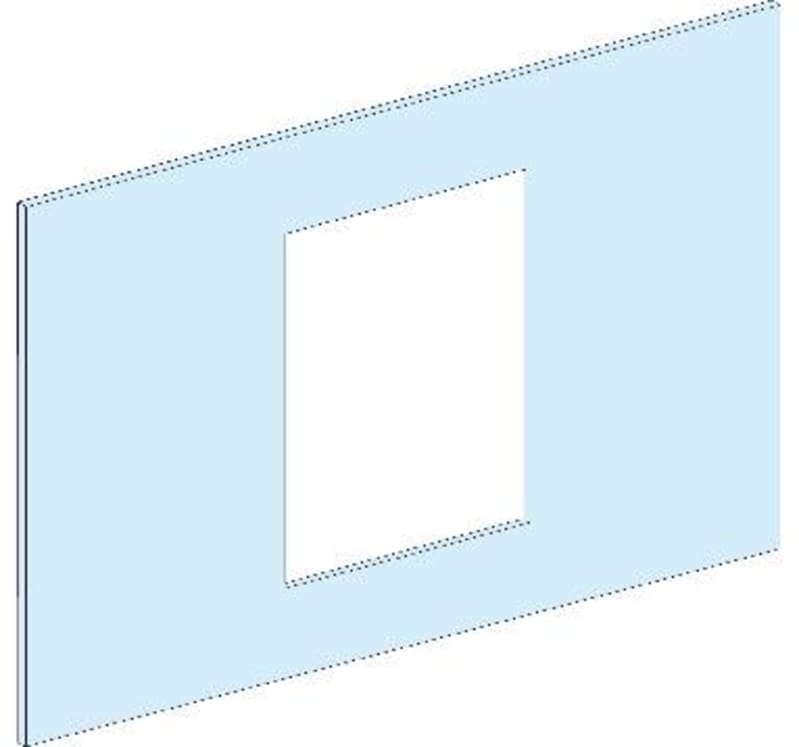

Front plate NS630B-1600-VERTICAL-PRISMA P (LVS03701)
Part numberLVS03701EAN / GTIN3606481866400HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03701 Front plate for NS630B-1600-vertical mounting-fixed-mounted-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03701
- EAN / GTIN
- 3606481866400
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NS1250 - control: motor mechanism - vertical installation; ComPact: fixed NS1600 - control: motor mechanism - vertical installation; ComPact: fixed NS630b...1000 - control: motor mechanism - vertical installation
- Poles description
- 1 x 3P: mounting plate support: NS1250 vertical installation; 1 x 4P: mounting plate support: NS1250 vertical installation; 1 x 3P: mounting plate support: NS1600 vertical installation; 1 x 4P: mounting plate support: NS1600 vertical installation; 1 x 3P: mounting plate support: NS630b...1000 vertical installation; 1 x 4P: mounting plate support: NS630b...1000 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm; Cubicle - width 650 mm depth 800 mm
- Connection position
- Rear connection; Front connection
- Number of vertical modules [50 mm]
- 7
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 350 mm
- Product weight
- 1.52 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 front connection on adaptor 14; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 front connection on adaptor 14; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 rear connection on adaptor 10; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 rear connection on adaptor 10; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 front connection on adaptor 14; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 front connection on adaptor 14; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 rear connection on adaptor 10; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 rear connection on adaptor 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 front connection on adaptor 12; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 front connection on adaptor 12; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 rear connection on adaptor 10; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 rear connection on adaptor 10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Number of Units in Package 3
- 56
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 7
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
