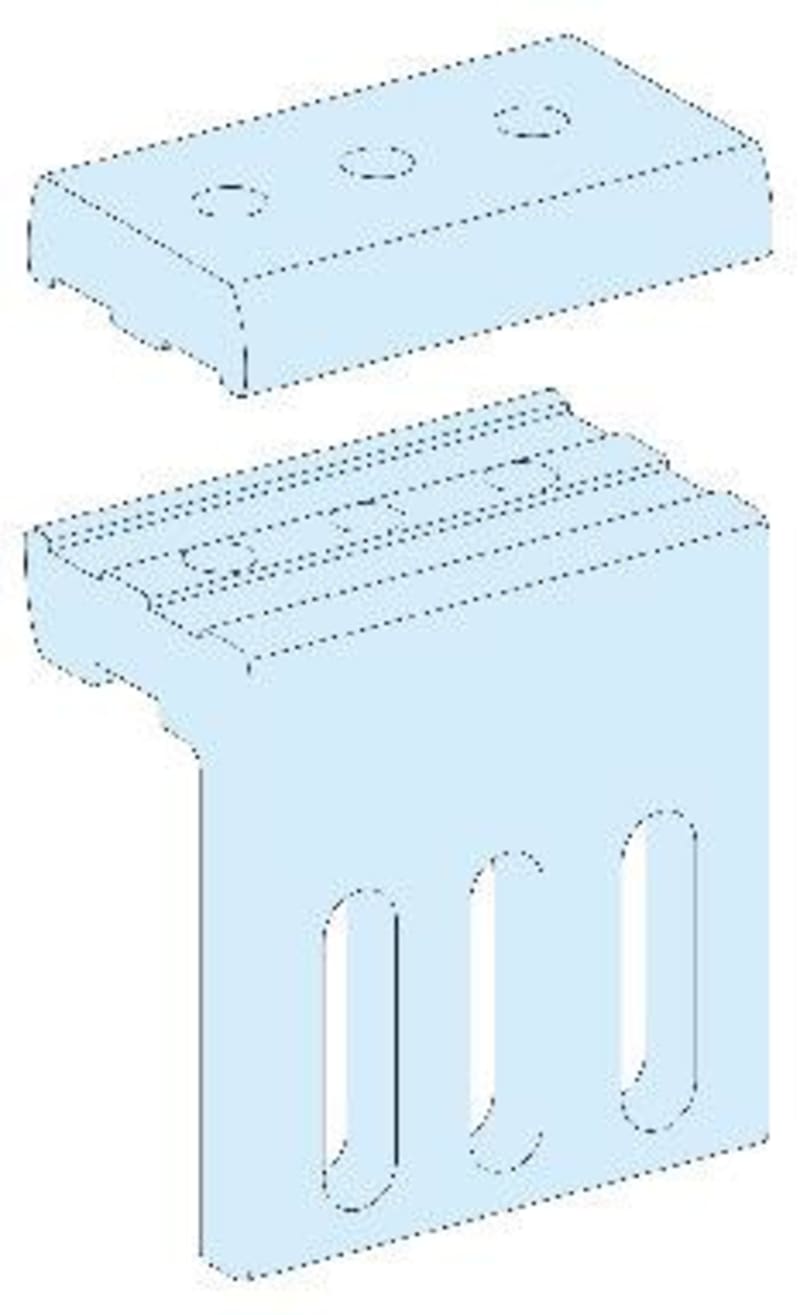

TILK.3200A Horizontal/Vertical S.Sk. 10mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04637 Connection Plate between 10mm-3200A horizontal/vertical busbar-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04637
- EAN / GTIN
- 3606481868060
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connector plate
- Product name
- Linergy BS
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- 10 mm horizontal busbar; vertical busbar
- Poles description
- 4P; 3P
- installation description
- Cubicle - width 650 mm
- [Ie] rated operational current
- 3200 A
- Product weight
- 1.3 kg
- Quantity per set
- Set of 1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 8.000 cm
- Package 1 Length
- 14.000 cm
- Package 1 Weight
- 1.303 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 7
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 9.450 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 168
- Package 3 Height
- 56.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 232.904 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Type of connection
- Field/field
- Rated current
- 3200 A
- Number of poles
- 1
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868060
- SAP 1200546999
- Code 82879437
Product Documentation
