Schneider Electric

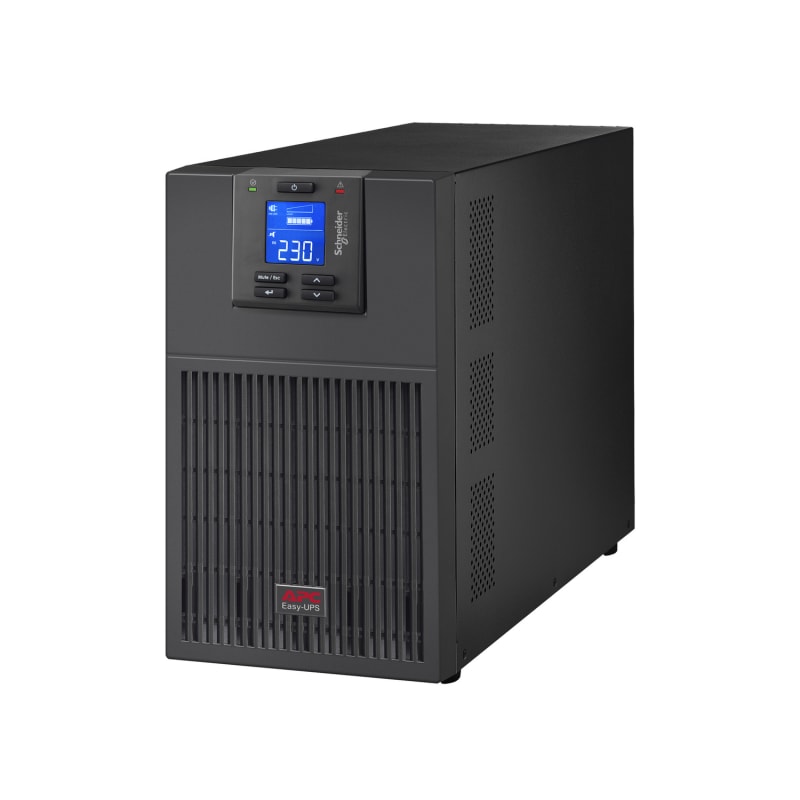

Schneider Electric APC Easy UPS On-Line, 3KVA/2700W, Tower, 230V, 6X IEC C13 + 1X IEC C19 outlets, Intelligent Card Slot, LCD SRV3KI-E
Part numberSRV3KI-EEAN / GTIN0731304436874HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRV3KI-E APC Easy UPS On-Line, 3 kVA/2700 W, 230 V, 6 IEC C13-outlet + 1 IEC C19-outlet, intelligent spor, LCD.
Technical Specifications
- Manufacturer part number (MPN)
- SRV3KI-E
- EAN / GTIN
- 0731304436874
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 60320 C20
- Efficiency at full load
- 110...285 V 40% load; 180...285 V full load
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 2700 W
- Rated power in VA
- 3000 VA
- Output connection
- 6 IEC 60320 C13; 1 IEC 60320 C19
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- 3 %
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 2700 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 88 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBCV205
- Run Time
- View Runtime Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 945 J
- Cable length
- 1.5 m
- Number of cables
- 1
- Color
- Black (RAL 7010)
- Height
- 336 mm
- Width
- 190 mm
- Depth
- 425 mm
- Product weight
- 26.0 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- Yes
- Mounting position
- Vertical
- Max runtime
- 3 min
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA; TISI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -20…50 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 50 dBA
- Heat dissipation
- 1024 Btu/h
- Operating altitude
- 0...3000 m
- Battery voltage
- 72 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 4 h
- Battery life
- 3…5 year(s)
- Battery charging power
- 60 W rated
- Battery power in VAh
- 528 VAh runtime
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 46.5 cm
- Package 1 Width
- 56.5 cm
- Package 1 Length
- 32.5 cm
- Package 1 Weight
- 28 kg
- Country of origin
- CN
- Warranty (in months)
- 24
