Schneider Electric LVS04613 Linergy LGYE 4000 A Internal Corner Joining Set
Pricing
Request a quote
We reply within 24 hours
Product Description

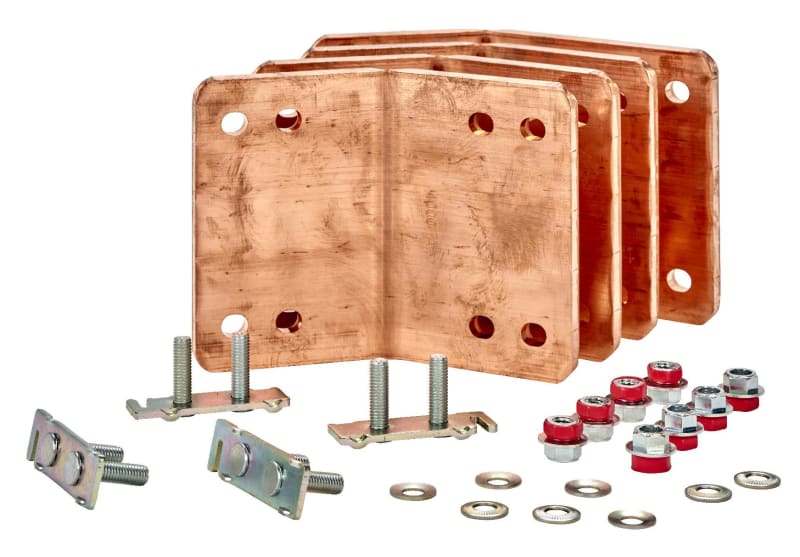

Schneider Electric LVS04613 is a joining set for an internal corner of the Linergy LGYE 4000 A four-pole busbar system used in PrismaSeT P switchboards. Supplied as a set of four copper parts, it complies with IEC 60439-1 and IEC 60439-2 with ASTA certification.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04613
- EAN / GTIN
- 3606481883575
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Joining set
- Product name
- Linergy LGYE
- Standards
- IEC 60439-1, inside enclosure; IEC 60439-2, inside enclosure
- Product certifications
- ASTA
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 400 mm
- [Ie] rated operational current
- 4000 A
- Material
- Copper
- Quantity per set
- Set of 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Warranty (in months)
- 18
- Rated current
- 4000 A
- Number of poles
- 4
- Country of origin
- France
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 3606481883575
- SAP 1200546991
- Code 82880072
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, yellow mushroom pushbutton XB4BC51GEX
Schneider Electric
Schneider Electric distributed analog input Modicon Momentum - 4 Input 170AAI52040
Schneider Electric
Schneider Electric Hexagonal spacers, PrismaSeT G and P, M6, H55 mm, Set of 4 LVS03197
Schneider Electric
Schneider Electric Connection transfer assembly, PrismaSeT P, universal in Duct 630A 4P LVS04460
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 50KA, thermal magnetic, lugs terminals GV4PE80N6
Schneider Electric
Front plate NSX250 Vigi Horizontal Prisma G
LVS03292
Schneider Electric
DIN-RAIL Stand (NSYMD66)
Schneider Electric

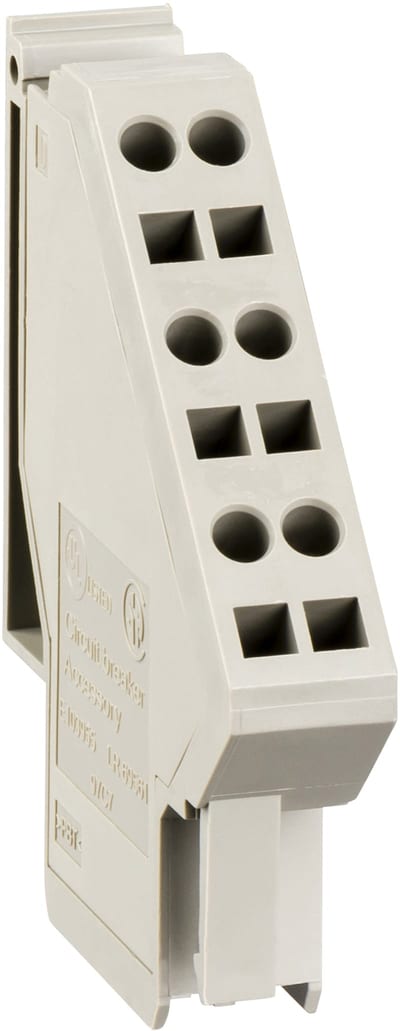

Schneider Electric LV847075SP MasterPact Fixed 6-Wire Terminal Block, Single Unit
