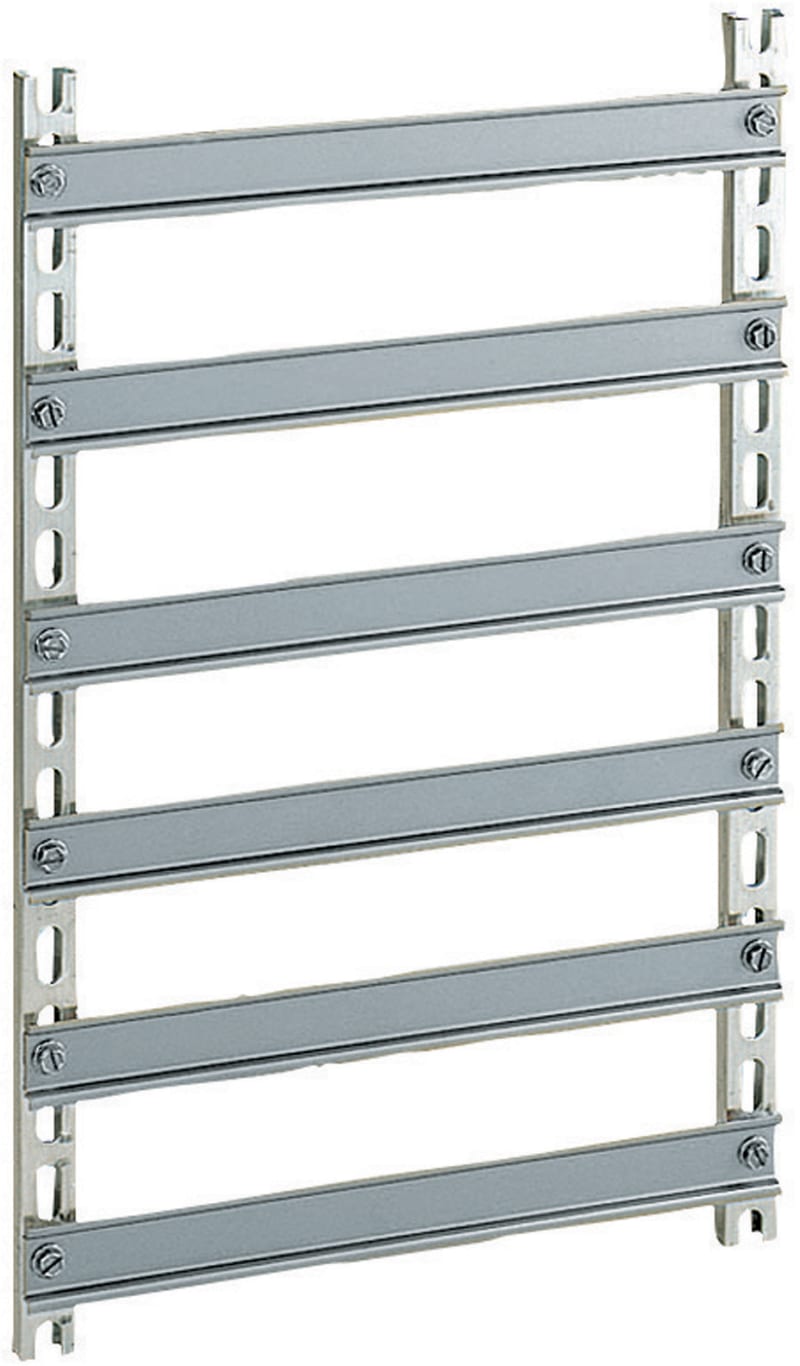

DIN-RAIL Stand (NSYMD66)

Schneider Electric NSYMD66 DIN-RAIL STAND.

Manufacturer part number (MPN)

NSYMD66

EAN / GTIN

3606480182853

Sales unit

pcs

Anwendung

Multi-purpose

Range

PanelSeT

Product or component type

Chassis

Accessory / separate part category

Mounting accessory

Type of rail

Symmetrical DIN

Enclosure nominal dimensions

-

Mounting support

Step slide; Direct fixing on backstuds; Spacer

Range compatibility

PanelSeT CRN; PanelSeT S3D; PanelSeT PLM

Device composition

fixing elements; 6 DIN rail; 2 upright

Quantity per set

Set of 1

Material

Uprights: aluminium; Rail: steel

Fixing mode

Screwed on backstuds; By fixing element

Adjustment

On step slides, type NSYSDCR…, pitch 12.5 mm

Height

Nominal: 600 mm; Real: 539.3 mm

Width

Nominal: 600 mm; Real: 550 mm

Depth

Real : 30 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

7.000 cm

Package 1 Length

55.500 cm

Package 1 Weight

2.716 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

15

Package 2 Height

29.000 cm

Package 2 Width

37.500 cm

Package 2 Length

120.000 cm

Package 2 Weight

40.740 kg

Country of origin

FR

Warranty (in months)

18

Suitable for enclosure building width

600 mm

Suitable for enclosure building height

600 mm

Colour

Grey

HS Code

8538.10

• EAN 3606480182853
• SAP 1000470636
• Code 8114255
