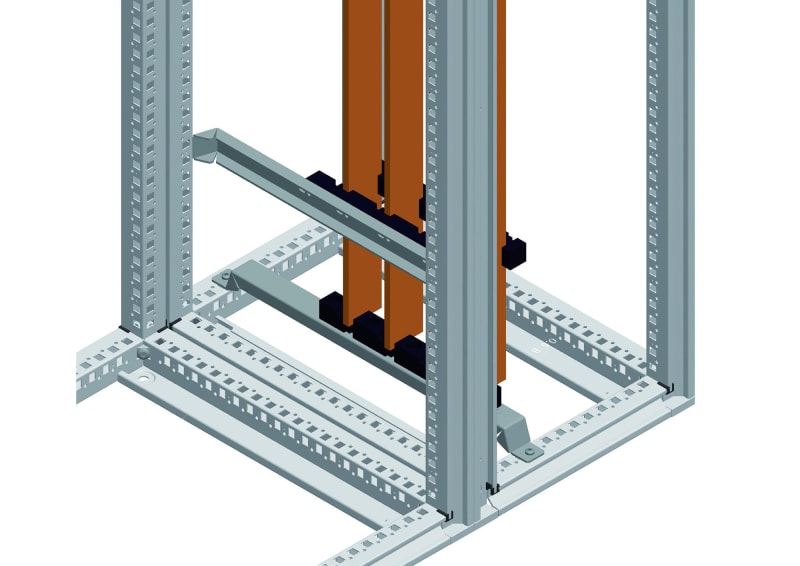

Schneider Electric Busbar, Linergy BS, drilled busbar, 1200A, vertical, flat bar, 50X10MM, L1675MM LVS04525

Schneider Electric LVS04525 Perforated flat rail-LGY BS-for Vertical mounting in side or rear-50x10mm length1675mm- PrismaSeT P.

Manufacturer part number (MPN)

LVS04525

EAN / GTIN

3606481870445

Sales unit

pcs

Dimensions

50x10 mm

Range

Linergy

Range of product

Linergy

Product or component type

Busbar

Product name

Linergy BS

Range compatibility

PrismaSeT PrismaSeT P enclosure

Busbar description

Flat bar

Quantity per set

Set of 1

Installation direction

Vertical, operating position: rear; Vertical, operating position: lateral

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm

[Ie] rated operational current

1200 A at 35 °C

[Icw] rated short-time withstand current

25 kA (1 s) for 3 supports; 50 kA (1 s) for 5 supports; 65 kA (1 s) for 7 supports

Permissible current

1200 A at 35 °C: <= IP31; 1080 A at 35 °C: IP31

Busbar cross section

50 x 10 mm

Length

1675 mm

Width

50 mm

Depth

10 mm

Product weight

6.86 kg

Colour

Natural

Type of busbar connection

Ø 10 mm drilled hole

Connection pitch

Connection each 25 mm

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

80

Warranty (in months)

18

Model

Flat

Height

10 mm

Flexible

No

Surface protection

Untreated

Rated current In

1200 A

Country of origin

Italy

HS Code

7407.29

• EAN 3606481870445
• SAP 1200546965
• Code 82879284
