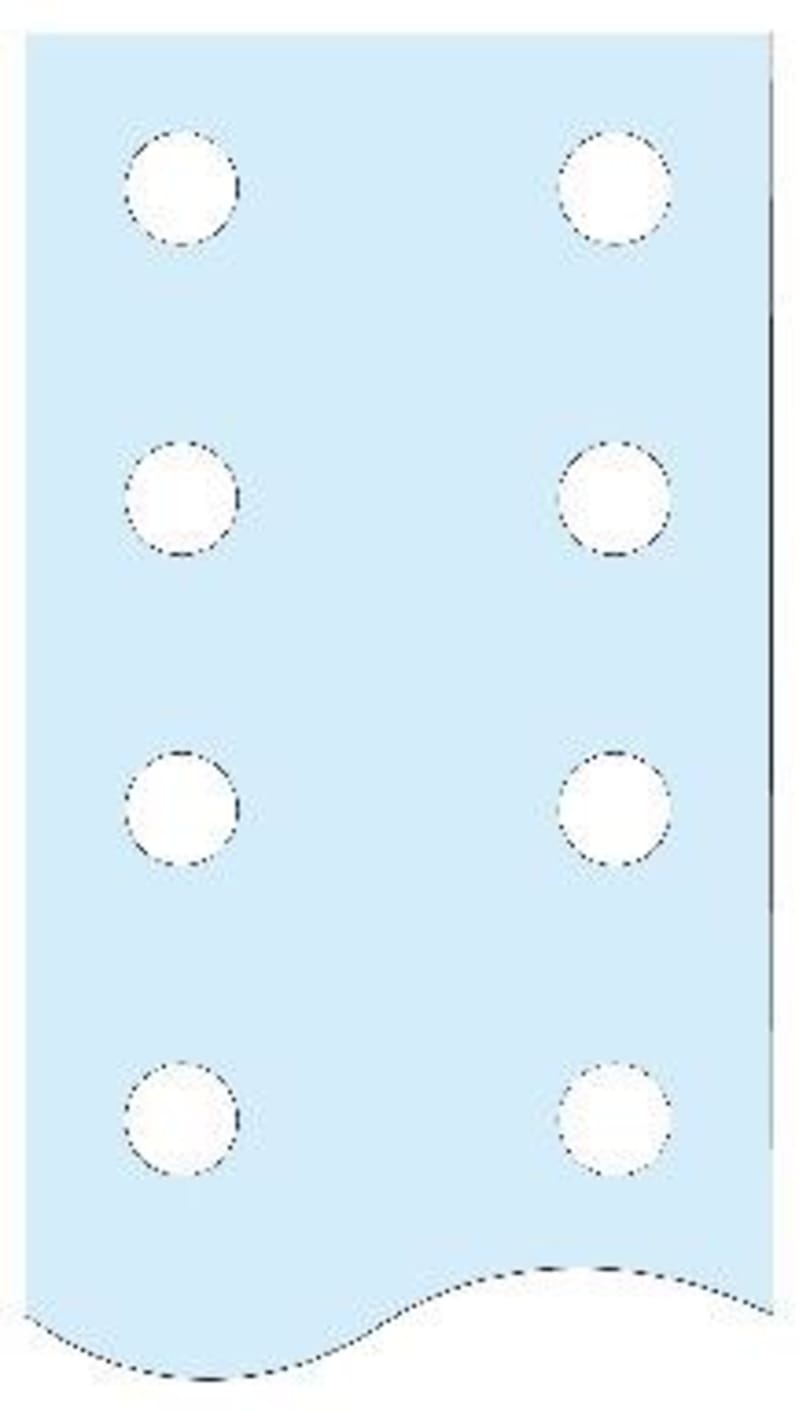

Perforated flat rail-LGY BS-Vertical 60X5MM

Schneider Electric LVS04516 Perforated flat rail-LGY BS-for Vertical mounting in side or rear-60x5mm length1675mm- PrismaSeT P.

Manufacturer part number (MPN)

LVS04516

EAN / GTIN

3606481870421

Sales unit

pcs

Range

Linergy

Range of product

Linergy

Product or component type

Busbar

Product name

Linergy BS

Range compatibility

PrismaSeT PrismaSeT P enclosure

Busbar description

Flat bar

Quantity per set

Set of 1

Installation direction

Vertical, operating position: rear; Vertical, operating position: lateral

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm

[Ie] rated operational current

800 A at 35 °C

[Icw] rated short-time withstand current

15 kA (1 s) for 3 supports (lateral position); 30 kA (1 s) for 5 supports (lateral position); 40 kA (1 s) for 7 supports (lateral position); 15 kA (1 s) for 3 supports (rear position); 30 kA (1 s) for 5 supports (rear position); 40 kA (1 s) for 7 supports (rear position)

Permissible current

800 A at 35 °C: <= IP31; 750 A at 35 °C: IP31

Busbar cross section

60 x 5 mm

Length

1675 mm

Width

60 mm

Depth

5 mm

Product weight

4.54 kg

Colour

Natural

Type of busbar connection

Ø 10 mm drilled hole

Connection pitch

Connection each 25 mm

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.500 cm

Package 1 Width

14.500 cm

Package 1 Length

179.500 cm

Package 1 Weight

4.446 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

80

Package 2 Height

34.000 cm

Package 2 Width

120.000 cm

Package 2 Length

202.000 cm

Package 2 Weight

374.000 kg

Country of origin

IT

Warranty (in months)

18

Model

Flat

Height

5 mm

Flexible

No

Surface protection

Untreated

Rated current In

800 A

HS Code

7407.29

• EAN 3606481870421
• SAP 1200546963
• Code 82879264
