Prefab.Connection MTZ1 1600A/LGY 3P uttrekkb.
Pricing
Request a quote
We reply within 24 hours
Product Description

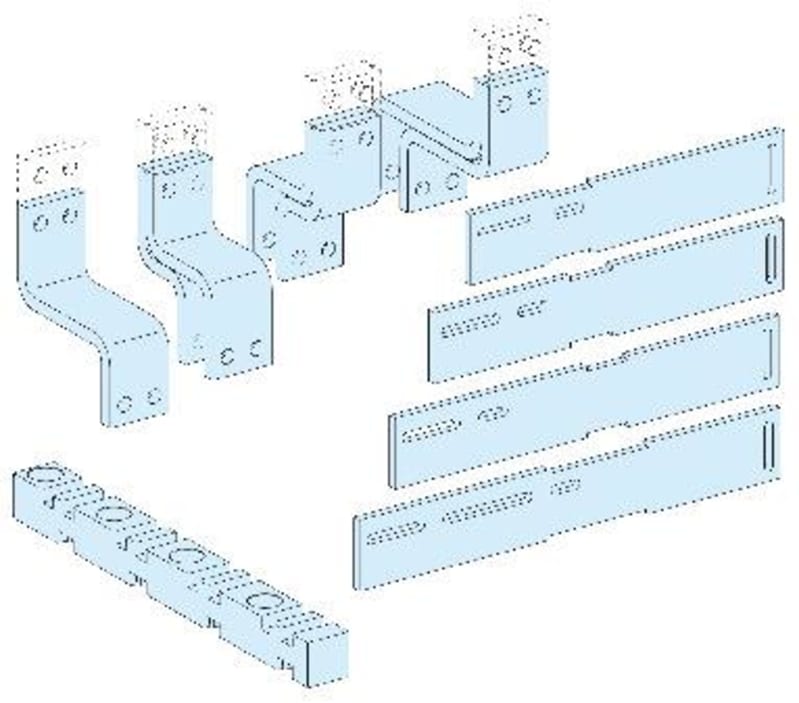

Schneider Electric LVS04491 Prefabricated connection for withdrawable-vertical mounted MTZ1/NS 1600A for Linergy LGY 3P -PrismaSeT.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04491
- EAN / GTIN
- 3606481867872
- Sales unit
- pcs
- Rated current
- 1600 A
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 400 mm: front; 400 + 400 mm: rear
- Installed device
- ComPact: drawout NS1600 - control: direct front rotary handle vertical installation; ComPact: drawout NS1600 - control: motor mechanism vertical installation; ComPact: drawout NS1600 - control: toggle vertical installation; Masterpact: drawout NT16 - control: toggle vertical installation; Masterpact: drawout NT16 - control: motor mechanism vertical installation
- [Ie] rated operational current
- 1600 A
- Busbar cross section
- 80 x 10 mm
- Height
- 150 mm
- Width
- 550 mm
- Depth
- 300 mm
- Product weight
- 17.38 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 drawout toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 drawout direct front rotary handle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 drawout motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout toggle vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout direct front rotary handle vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout motor mechanism vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 drawout toggle vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 drawout motor mechanism vertical 3P 1 front connection on adaptor 15; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 drawout toggle vertical 3P 1 rear connection on adaptor 11; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 drawout motor mechanism vertical 3P 1 rear connection on adaptor 11; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 drawout toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 drawout motor mechanism vertical 3P 1 rear connection on Canalis 16
- Warranty (in months)
- 18
- With cover
- No
- Max. rated current
- 1600 A
- Country of origin
- France
